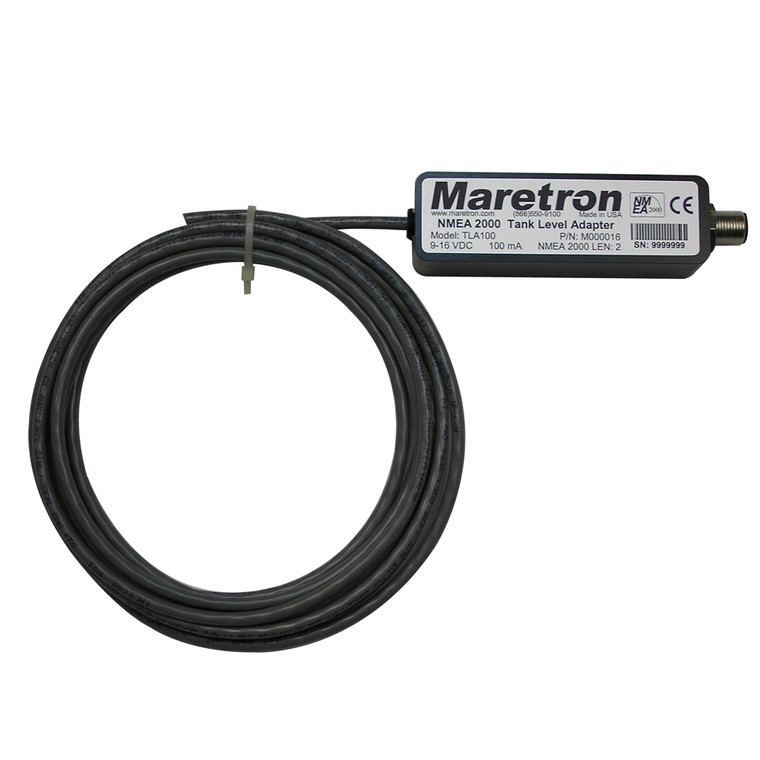

Maretron TLA100 NMEA 2000 Tank Level Adapter [TLA100-01]

Maretron
SKU:
MCS-31746
|
UPC:
873804000091
$360.00
(No reviews yet)
Width:
7.00 (in)
Height:
2.00 (in)
Depth:
10.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added

TLA100 NMEA 2000®Tank Level Adapter


The TLA100 is used to adapt commercially available resistive tank senders to the NMEA 2000® network. This allows you to observe tank levels anywhere on the vessel where there is an NMEA 2000® compatible display such as the Maretron DSM200.

The TLA100 is compatible with both the American standard (240-33 ohm) and the European standard (10-180 ohm) resistive senders. In fact, the TLA100 can be calibrated for any resistance between 0 and 300 ohms.

Unlike most tank senders that only work with rectangular tanks, the TLA100 can be calibrated for irregular tank shapes so you know the true level of the tanks. You can also use the TLA100 with analog gauges so you don't have to get rid of existing gauges to enjoy the advantages of digitally networked information.

Features:

  • Tank Level
  • Tank Capacity
  • FLuid Type

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Data Interface: NMEA 2000
  • Box Dimensions: 2"H x 7"W x 10"L WT: 0.88 lbs
  • UPC: 873804000091

Quick Guide (pdf)
Owner's Manual (pdf)
Manufacturer's warranty: this item is covered by Maretron's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
MPN:
TLA100-01
