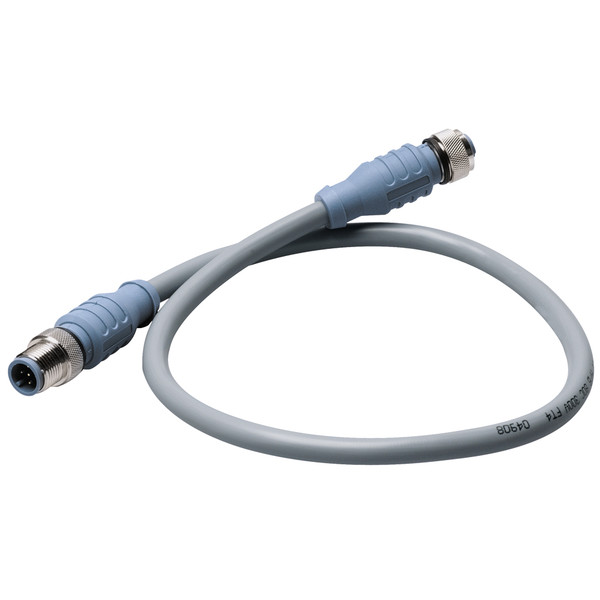

Maretron Micro Double-Ended Cordset - 0.5M [CM-CG1-CF-00.5]

Maretron
SKU:
MCS-31797
|
UPC:
873804001500
$40.00
(No reviews yet)
Width:
5.00 (in)
Height:
1.00 (in)
Depth:
7.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added

Micro Double-Ended Cordset - 0.5M

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59" Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
  • (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Specifications:

  • Data Interface: NMEA 2000
  • NMEA 2000 Connectors: Backbone/Drop Cables
  • Box Dimensions: 1"H x 5"W x 7"L WT: 0.13 lbs
  • UPC: 873804001500
Manufacturer's warranty: this item is covered by Maretron's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
MPN:
CM-CG1-CF-00.5
