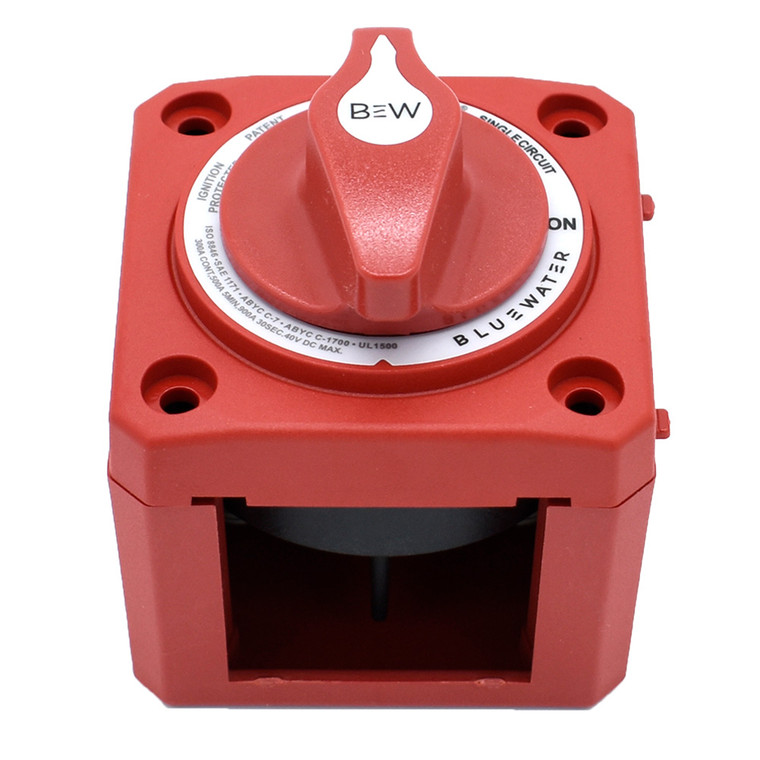

Bluewater On\/Off Switch Battery Switch - Surface Mount - Red [9800-006-11]

Bluewater On/Off Switch Battery Switch - Surface Mount - Red [9800-006-11]

Bluewater
SKU:
MCS-111026
|
UPC:
810196331150
$27.27
(No reviews yet)
Width:
6.00 (in)
Height:
4.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

On/Off Switch Battery Switch - Surface Mount - Red

Simple, reliable, and built for tough environments, this On/Off Battery Switch provides secure control of power to a single circuit. It’s ideal for isolating batteries or equipment when not in use, helping to ensure safety and prevent unwanted battery drain.

Ignition-protected and safe for use aboard gasoline-powered boats, this switch is well-suited for both marine and RV applications. The versatile case design allows for surface, front panel, or rear panel mounting.

Constructed from all non-corrosive marine-grade metals and molded in reinforced polycarbonate, it delivers long-lasting durability in harsh conditions. Tactile knob textures allow users to confirm switch position by feel, and the included international ON/OFF label and ICON label set make circuit identification easy and intuitive.

Specifications:

  • Continuous Rating: 300 Amps DC
  • Intermittent Rating: 500 Amps DC (5 min)
  • Cranking Rating: 900 Amps DC (30 sec)
  • Max Voltage: 40VDC
  • Cable Size: 4/0 AWG

Specifications:

  • Continuous Amperage: 300
  • Positions: 2
  • Box Dimensions: 4"H x 6"W x 9"L WT: 0.7 lbs
  • UPC: 810196331150

Quick Guide (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Bluewater's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
9800-006-11
