Bluewater OFF\/1\/2 Battery Switch - Surface Mount - Red [9800-008-11]

Bluewater OFF/1/2 Battery Switch - Surface Mount - Red [9800-008-11]

Bluewater
SKU:
MCS-111029
|
UPC:
810196331198
$43.54
(No reviews yet)
Width:
6.00 (in)
Height:
4.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

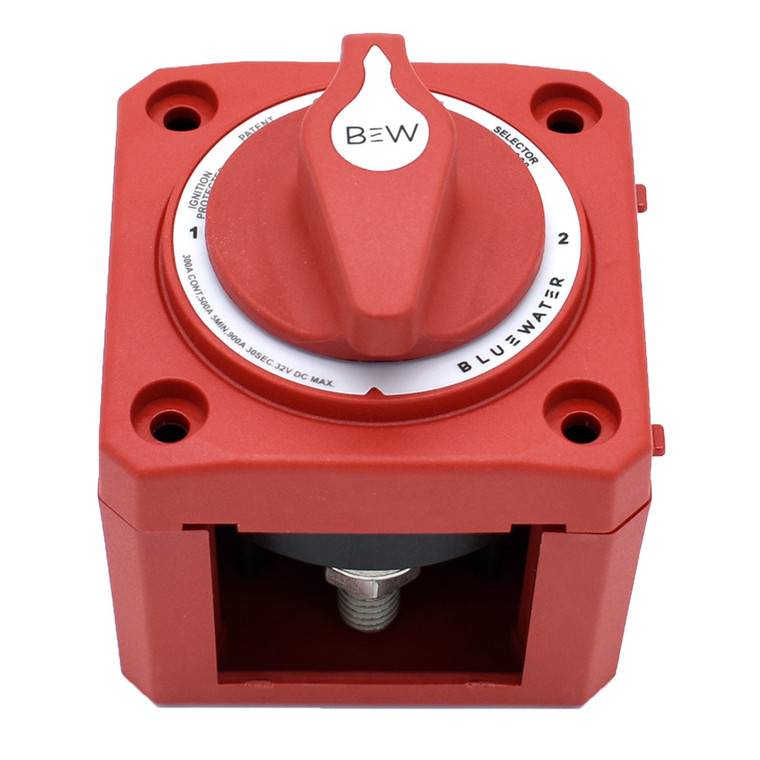

OFF/1/2 Battery Switch - Surface Mount - Red

This 1/2/Off switch offers seamless selection between two power sources, with an Off position for isolation. It’s a reliable solution for switching between primary and secondary batteries in compact or mobile applications, such as boats, RVs, or service vehicles.

Ignition-protected and safe for use aboard gasoline-powered boats, the 1/2/Off switch is built for flexibility with a case design that supports surface, front panel, or rear panel mounting.

To ensure lasting performance, the switch features 3/8″-16 tin-plated copper studs for strong conductivity and corrosion resistance, compatible with both 3/8″ and M10 ring terminals. A 7/8″ stud length accommodates multiple cable terminals when needed.

Constructed from marine-grade, non-corrosive metals and a reinforced polycarbonate housing, it’s made to endure harsh environments. Tactile knob textures allow you to identify the position by feel, and both international ON/OFF legends and an icon label set are included for easy circuit labeling.

Specifications:

  • Continuous Rating: 300 Amps DC
  • Intermittent Rating: 500 Amps DC (5 min)
  • Cranking Rating: 900 Amps DC (30 sec)
  • Max Voltage: 32VDC
  • Cable Size: 4/0 AWG

Specifications:

  • Continuous Amperage: 300
  • Positions: 3
  • Box Dimensions: 4"H x 6"W x 9"L WT: 0.85 lbs
  • UPC: 810196331198

Quick Guide (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Bluewater's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
9800-008-11
