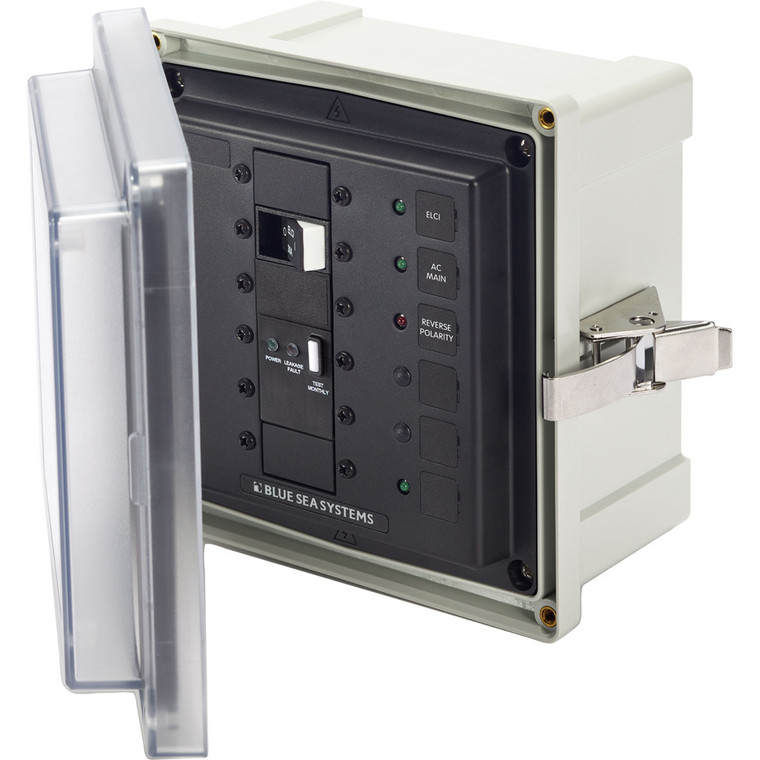

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120\/240V AC \/ 50A ELCI Main - 1 Blank Circuit Position [3119]

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position [3119]

Blue Sea Systems
SKU:
MCS-52007
|
UPC:
632085031190
$870.95
$1,221.99
(You save $351.04 )
(No reviews yet)
Width:
9.00 (in)
Height:
7.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

  • Includes one 120/240V AC / 50A ELCI Main and one blank position
  • Blank apertures for custom breaker loading
  • Glass-filled polycarbonate mounting box
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
  • Stainless steel mounting hardware included
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Technical Specifications:

  • Minimum Operating Temperature: -35° C
  • Maximum Operating Temperature: 66° C
  • Cover Screws and Hardware: 10-32 Stainless Steel
  • Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
  • Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
  • Mounting Hardware: 1/4" Diameter, #12 (6 mm)
  • Weight: 7.00lb (3.18 kg)

In the Box:

  • 3119 Enclosure
  • Glands x 5
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Quick Guide (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Blue Sea Systems' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
3119
