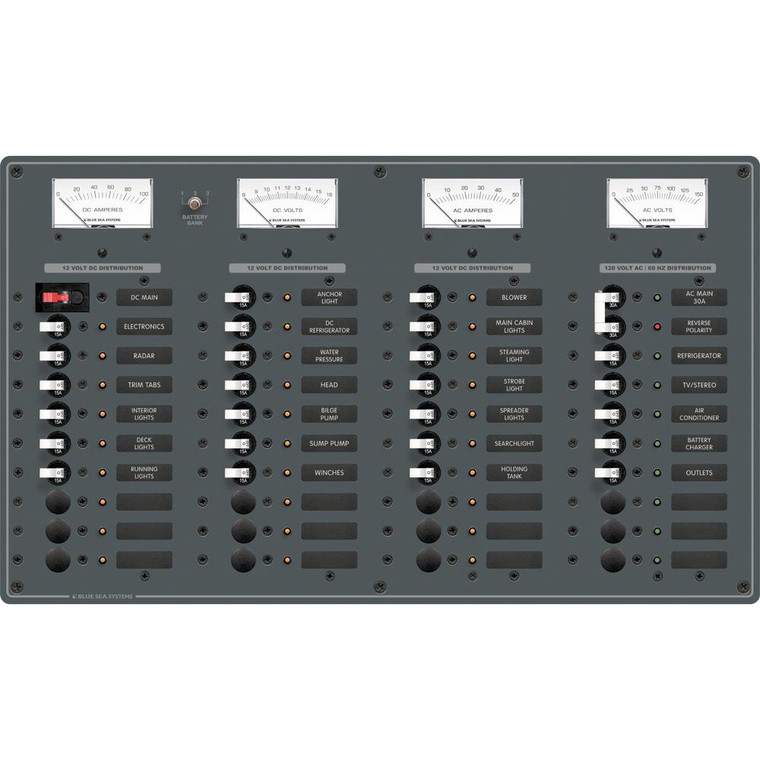

Blue Sea 8095 AC Main +8 Positions \/ DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]

Blue Sea Systems
SKU:
MCS-20699
|
UPC:
632085080952
$1,765.95
$2,582.99
(You save $817.04 )
(No reviews yet)
Width:
15.00 (in)
Height:
7.00 (in)
Depth:
22.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

AC Main +8 Positions / DC Main +29 Positions

PN:   8095
White Switches

  • Includes set of 30 common AC and 30 common DC labels
  • All AC and DC buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • Maximum panel Amperage
    • 100 Amperes DC
    • 50 Amperes AC

AC Features
  • Red reverse polarity indicating LED
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter

DC Features
  • 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
  • 8003, 8-16 Volt DC Voltmeter
  • 8017, 0-100 Amp DC Ammeter
  • Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:
  • AC Positions: Source Selectors +8
  • DC Positions: Main +29
  • 120 Volts AC
  • 12 Volts DC
  • (1) 30A - (5) 15A AC Circuit Breakers
  • (1) 100A - (20) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards



WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Max Breaker Quantity: 8 AC / 29 DC
  • AC/DC: Both
  • Voltage: 120v/12v
  • Box Dimensions: 7"H x 15"W x 22"L WT: 8 lbs
  • UPC: 632085080952

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Blue Sea Systems' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
8095
