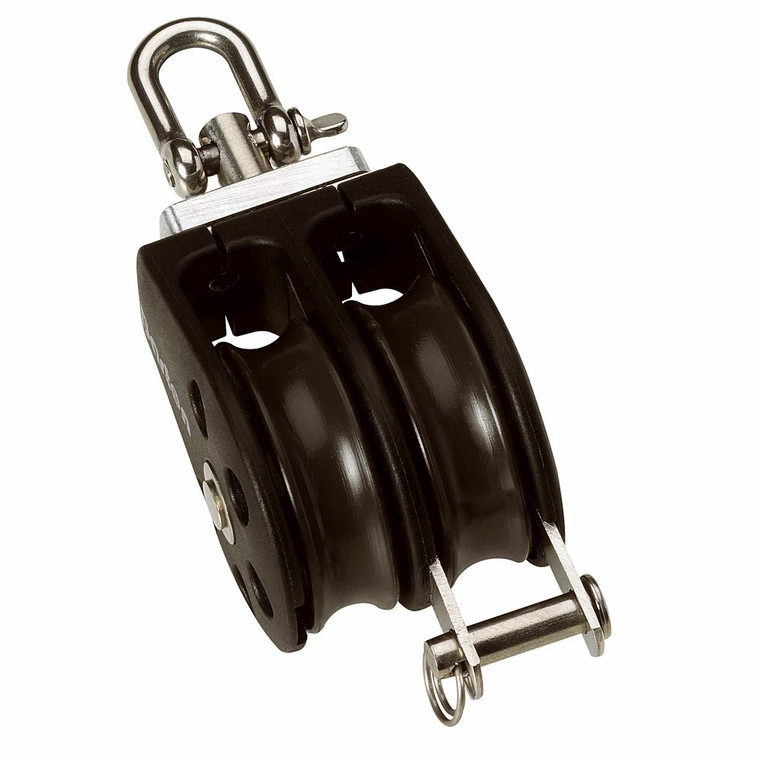

Barton Size 5 54mm Plain Bearing Pulley Block Double Swivel Becket [N05231]

Barton Size 5 54mm Plain Bearing Pulley Block Double Swivel Becket [N05231]

Barton Marine
SKU:
MCS-111833
|
UPC:
5035088081578
$78.95
$83.72
(You save $4.77 )
(No reviews yet)
Width:
3.00 (in)
Height:
2.00 (in)
Depth:
7.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Size 5 54mm Plain Bearing Pulley Block Double Swivel & Becket

The Size 5 Barton range of blocks has a 54mm 2 1/8" sheave. They are a rugged construction, featuring high-grade moulded side plates that are through-bolted and riveted for added strength and security. All load-carrying components and interior frame are from marine-grade 316 stainless steel, and both plain and ball bearing sheaves are available. This sleek and versatile range is engineered for use on larger cruising and racing yachts and is compatible with our ball bearing mainsheet traveller system.

Suitable for up to 12mm 7/16" rope.

Specifications:

  • Weight: 312 g
  • Dimensions: 155 × 59 × 58 mm
  • Size: 5 (54MM)
  • Block Type: Swivel + Becket
  • No. of Sheaves: Double
  • Bearing Type: Plain
  • Sheave Size: 54mm x 17mm (2 1/8" x 5/8")
  • Max rope diameter: 12mm (7/16")
  • SWL: 750kg (1650lbs)
  • Break load: 1500kg (3300lbs)
  • Max rolling load (ball bearing blocks): 525kg (1157lbs)


Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Barton Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
N05231
