Actisense NMEA2000 Micro T-Piece w\/Female Connectors 3M UL Certified Cable [A2K-MPT-2]

Actisense NMEA2000 Micro T-Piece w/Female Connectors 3M UL Certified Cable [A2K-MPT-2]

Actisense
SKU:
MCS-111804
|
UPC:
5060998710140
$50.00
(No reviews yet)
Width:
6.00 (in)
Height:
1.00 (in)
Depth:
7.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

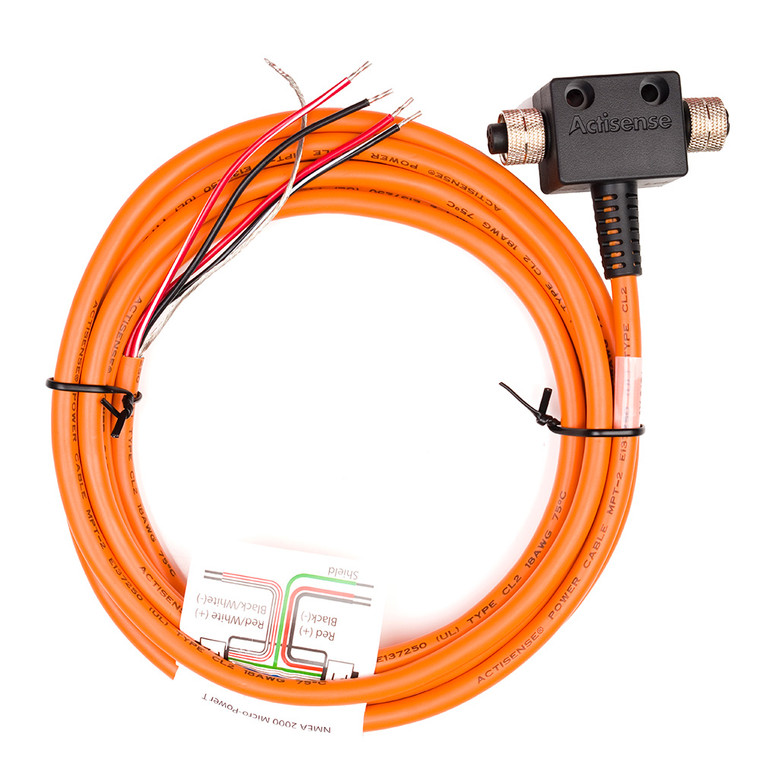

NMEA2000 Micro T-Piece with Female Connectors & 3M UL Certified Cable

The A2K-MPT-2 is a simple, safe, and efficient method of powering an NMEA 2000 network.

Now with improved strain relief!

The Micro Power T can easily provide power to the NMEA 2000 bus with micro-fit connectors to enable ‘plug and play’ connectivity.

The Actisense-designed connectors are quality-engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible.

The Actisense specified cable is UL certified, and the three-meter cable length ensures that the A2K-MPT-2 offers complete flexibility when installing.

Technical Specifications:

Electrical

  • Rated Current - 4A (each feed)
  • Rated Voltage - 60VDC

Mechanical

  • Female Contact - Phosphor bronze, gold plated
  • Contact Carrier - PA66 (30% Glass Filled), Black
  • Contact Polarization - Standard M12 -“A”- polarization
  • Mating Thread - M12
  • Screw Cap - Brass, nickel plated
  • O-Ring Seal - Rubber, black
  • Housing - PVC, black
  • Cable Jacket Material - 0.8mm Nom. PVC, orange
  • Cable Outer Diameter - 6.7mm ±0.254mm
  • Cable Length - 3M
  • Wire Length - 100mm (7mm stripped)
  • Wire Jacket - PVC
  • Wires - 18 AWG (stripped and tinned)
  • Drain - 18 AWG (34-strand tinned copper)
  • Shield - Al-mylar
  • Weight - 290g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -20°C to +70°C
  • Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Female-Female
  • Data Interface: NMEA 2000
  • Cable Length (Meters): 3m
  • NMEA 2000 Connectors: Tee Connectors
  • Box Dimensions: 1"H x 6"W x 7"L WT: 0.65 lbs
  • UPC: 5060998710140

Owner's Manual (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Actisense's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
A2K-MPT-2
