Wichard Webbing Snap Shackle - 3-1\/8" [2374W]

Wichard Webbing Snap Shackle - 3-1/8" [2374W]

Wichard Marine
SKU:
MCS-97653
|
UPC:
768536023749
$135.45
$159.35
(You save $23.90 )
(No reviews yet)
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
3.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

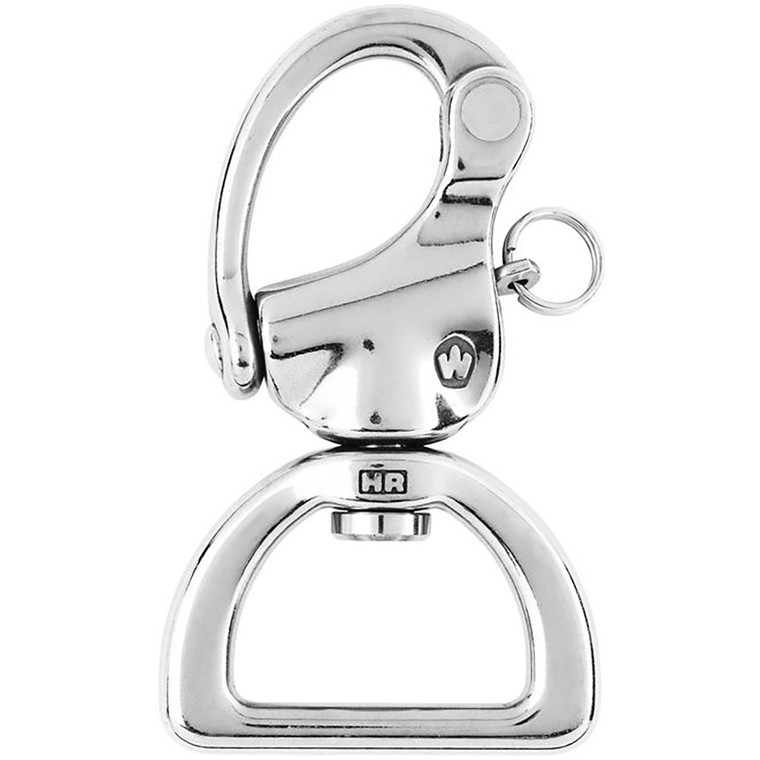

Web Snap Shackle - 3-1/8"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
  • Its flat design allows attaching a webbing
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2110 / (kg) 960
  • Breaking load: (lb) 4400 / (kg) 2000
  • Weight: (lb) 0.187 / (g) 85

Dimensions:

  • A: (inch) 5/8" / (mm) 16
  • B: (inch) 1 3/16" / (mm) 30
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Wichard Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
2374W
