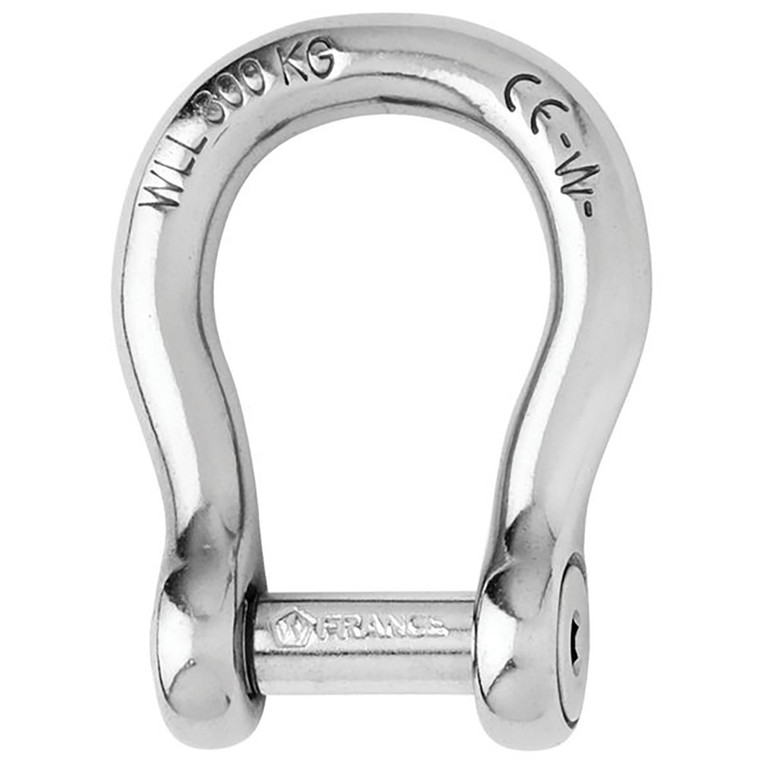

Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15\/32" [1346W]

Wichard Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32" [1346W]

Wichard Marine
SKU:
MCS-97646
|
UPC:
3587790092035
$134.80
$158.59
(You save $23.79 )
(No reviews yet)
Width:
3.00 (in)
Height:
1.00 (in)
Depth:
4.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Self-Locking Allen Head Pin Bow Shackle - 12mm Diameter - 15/32"

Features:

  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Ideal to link chains and anchor
  • On the halyard, avoids damaging the sails
  • To be used when the clutter is reduced
  • To be used when ample room is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 4580 / (kg) 2080
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.489 / (g) 222

Dimensions:

  • A: (inch) 2 11/64" / (mm) 55
  • B: (inch) 1 1/16" / (mm) 27
  • C: (inch) 15/32" / (mm) 12
  • D: (inch)15/16" / (mm) 24
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 25/64" / (mm) 10
  • F: (inch) 1 1/2" / (mm) 38
  • M: (inch) 2 31/64" / (mm) 63

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Wichard Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
1346W
