Wichard Key Pin Shackle - Diameter 5mm - 3\/16" [1432W]

Wichard Key Pin Shackle - Diameter 5mm - 3/16" [1432W]

Wichard Marine
SKU:
MCS-93123
|
UPC:
3587790014327
$31.95
$36.60
(You save $4.65 )
(No reviews yet)
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
6.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

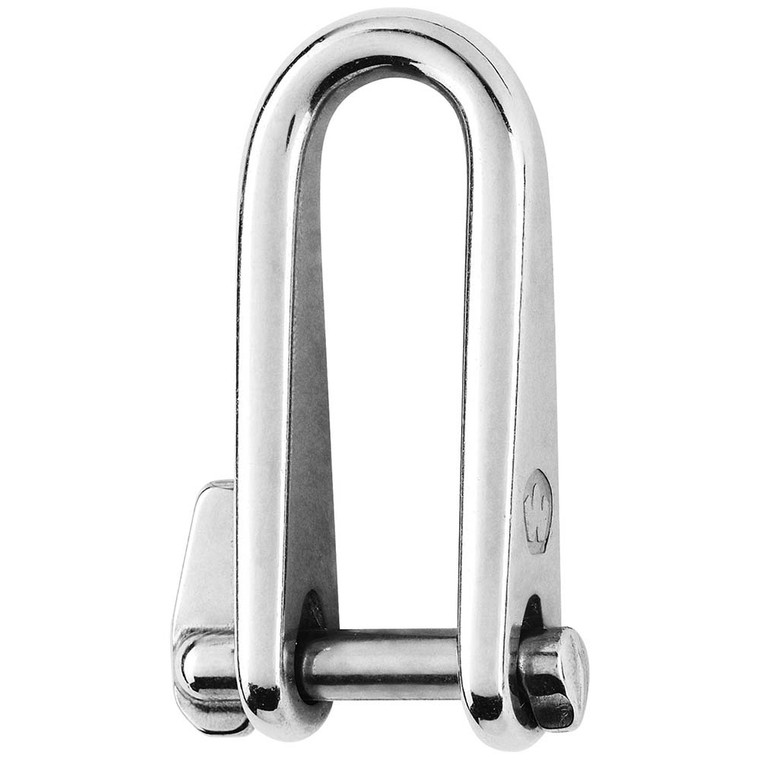

Key Pin Shackle - Diameter 5mm - 3/16"

Features:

  • Key pin shackle forged in grade 316L stainless steel
  • Opening and closing is done simply by rotating the pin half a turn
  • No risk to lose the pin as it remains attached
  • Outstanding working and breaking loads

Applications:

  • Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • Breaking load (lb) 2200
  • Weight (lb) 0.068

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 33/64"
  • C (inch) 13/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • F (inch) 1-59/64"
  • G (inch) 1-7/32"

Warranty
Manufacturer's warranty: this item is covered by Wichard Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
1432W
