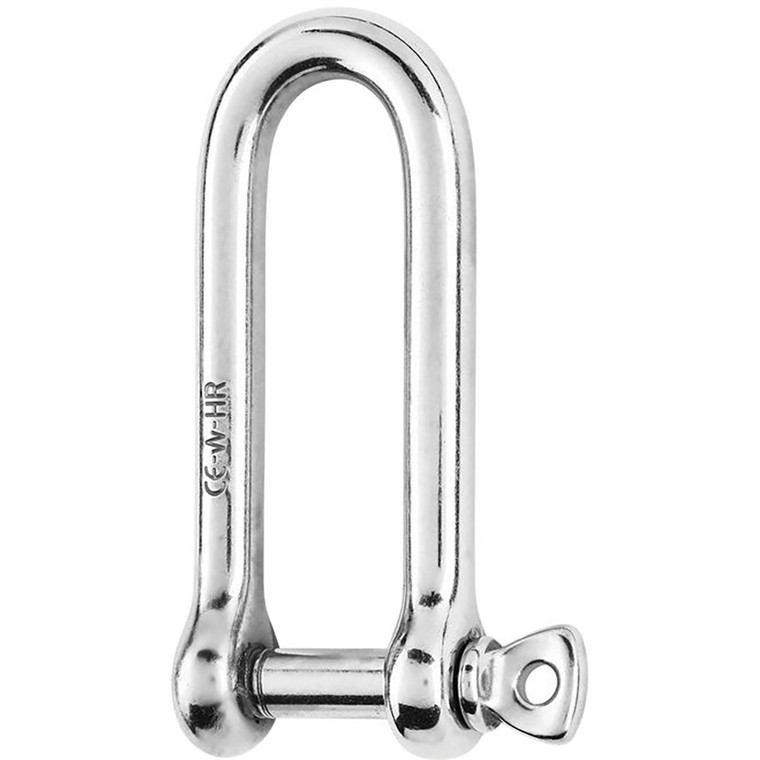

Wichard HR Long D Shackle - 10mm Diameter - 25\/64" [11215W]

Wichard HR Long D Shackle - 10mm Diameter - 25/64" [11215W]

Wichard Marine
SKU:
MCS-97709
|
UPC:
358779011216
$153.85
$181.00
(You save $27.15 )
(No reviews yet)
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
6.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

HR Long D Shackle - 10mm Diameter - 25/64"

Features:

  • Forged long shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5820 / (kg) 2640
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.362 / (g) 164

Dimensions:

  • A: (inch) 3 5/64" / (mm) 78
  • B: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 25/64" / (mm) 10

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Wichard Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
11215W
