Wichard Captive Pin Bow Shackle - Diameter 4mm - 5\/32" [1441W]

Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [1441W]

Wichard Marine
SKU:
MCS-93126
|
UPC:
3587790014419
$25.95
$29.50
(You save $3.55 )
(No reviews yet)
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
6.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

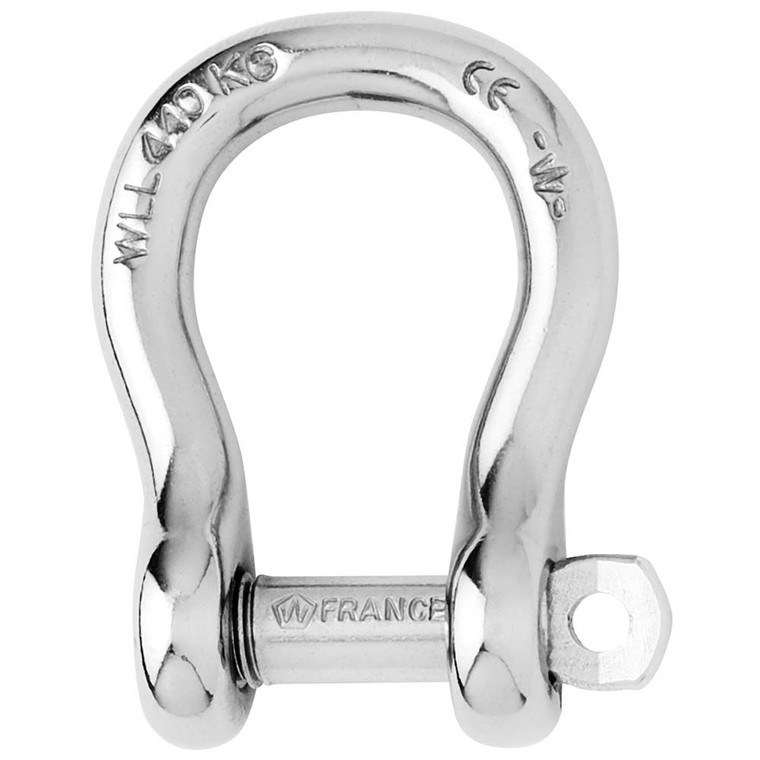

Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Features:

  • Captive pin bow shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single-handed operation for more safety
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.022

Dimensions (see 2nd image):

  • A (inch) 45/64"
  • B (inch) 5/16"
  • C (inch) 13/64"
  • D (inch) 23/64"
  • D diameter (inch) 5/32"
  • E (inch) 5/32"
  • M (inch) 53/64"

Warranty
Manufacturer's warranty: this item is covered by Wichard Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
1441W
