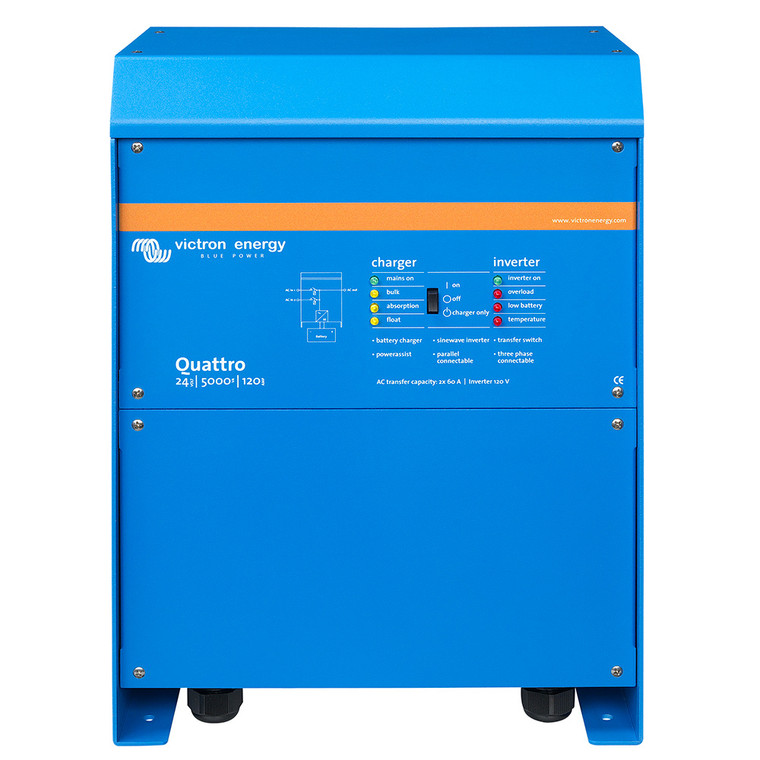

Victron Quattro 24\/5000\/120 100\/100 120V VE.Bus (UL458) [QUA242503112]

Victron Quattro 24/5000/120 100/100 120V VE.Bus (UL458) [QUA242503112]

Victron Energy
SKU:
MCS-115724
|
UPC:
8719076079781
$2,245.70
$2,642.00
(You save $396.30 )
(No reviews yet)
Width:
18.00 (in)
Height:
15.00 (in)
Depth:
22.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Quattro 24/5000/120 100/100 120V VE.Bus (UL458)

This inverter charger has two AC inputs and two AC outputs.  Its integrated transfer switch will automatically connect to the active source.  The output has UPS functionality, and the Quattro can take over the power supply to loads so quickly that computers and other equipment are not interrupted.

Features:

  • 24V DC input
  • Pure Sine Wave 120 volt 60 Hz AC output
  • 2 x 100 Amp transfer switch
  • 120 Amp charger for main battery
  • 4 Amp charger for start battery
  • Battery temperature sensor included
  • Optional remote panel available - see below
  • Multiple units can be configured together to provide 240-volt, three-phase, or other configurations up to a maximum of 50 kVA output
  • 17.5" x 13" x 9.6" dimensions
  • 66 lbs
  • Comes with a 5-year warranty; extended warranty is available

Specifications:

  • PowerControl / PowerAssist: Yes
  • Integrated Transfer switch: Yes
  • AC inputs (2x): Input voltage range: 90-140 VAC; Input frequency: 45 65 Hz
  • Power factor: 1
Please contact your dealer for any returns, repairs or support issues related to this product.

Warranty
Manufacturer's warranty: this item is covered by Victron Energy's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
QUA242503112
