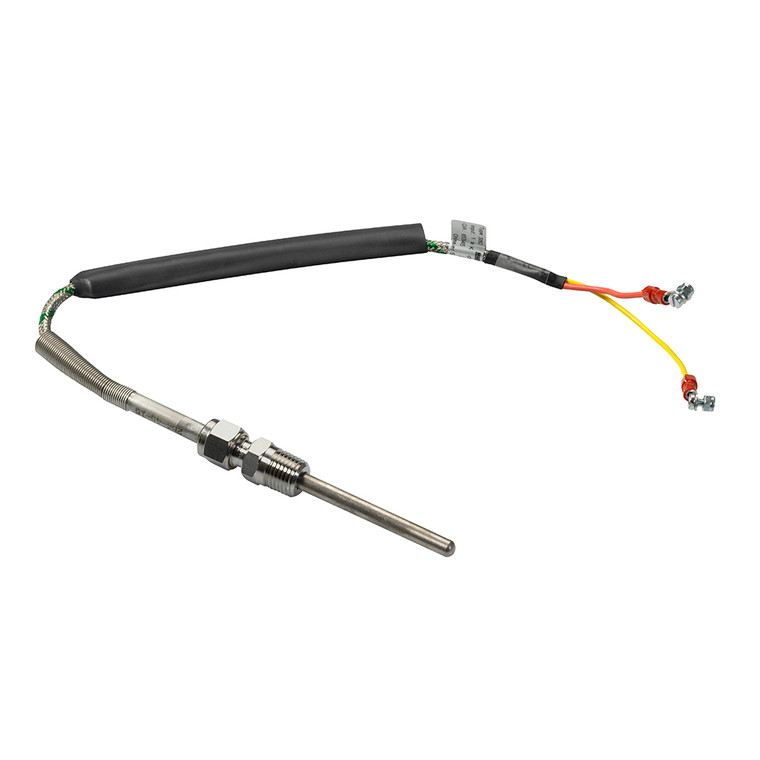

Veratron Pyrometer Sensor - 100-900C\/250-1650F [N03-320-264]

Veratron Pyrometer Sensor - 100-900C/250-1650F [N03-320-264]

Veratron
SKU:
MCS-83063
$298.53
$331.70
(You save $33.17 )
(No reviews yet)
Width:
4.00 (in)
Height:
1.00 (in)
Depth:
16.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Pyrometer Sensor - 100-900°C/250-1650°F

Pyrometer sensor used in conjunction with LinkUp Gateway Module.

Features:

  • Plug-and-Play installation and configuration
  • NMEA 2000® certified

Technical Specifications:

  • Temperature medium - Exhaust gas - Coolant - Water - Air - Engine oil - Transmission oil - Fuel
  • Input Signal - LIN bus
  • Operating Voltage - 6 - 24 VDC
  • Pyrometer Sensor
  • Thermocoupler Element
  • Measurement Range - 100-900°C/250-1650°F
  • Communication - Analog
  • Signal Output - 0 - 37 MV TC
  • Sensor Connector - Ring Tongue
  • Thread - R 1/4" Male
  • Warning Contact - None
  • Connector Type - Kabeloog
  • Sender element length + thread (L) - Adjustable maximal 60 mm
  • Sensor diameter - 6 mm
  • Torque - 20 Nm

*Sold as an Individual

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Diameter (mm): N/A
  • Diameter (Inches): N/A
  • Color: Black
  • Box Dimensions: 1"H x 4"W x 16"L WT: 0.15 lbs
Warranty
Manufacturer's warranty: this item is covered by Veratron's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
N03-320-264
