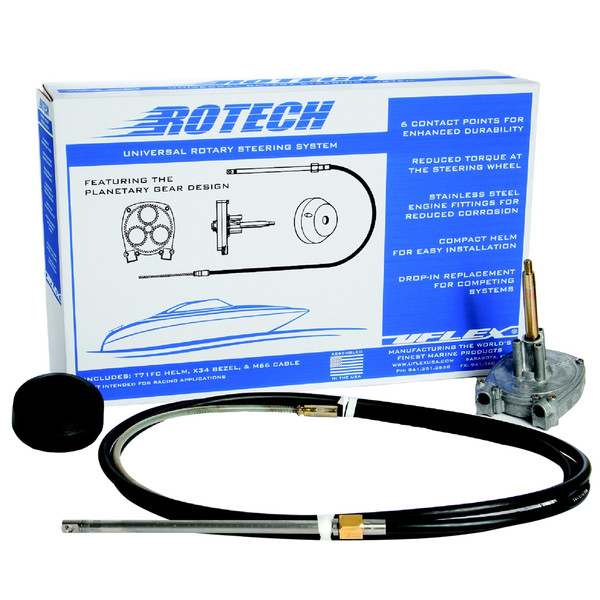

UFlex Rotech 16' Rotary Steering Package - Cable, Bezel, Helm [ROTECH16FC]

UFlex Rotech 16' Rotary Steering Package - Cable, Bezel, Helm [ROTECH16FC]

Uflex USA
SKU:
MCS-35951
|
UPC:
702755019732
$215.95
$244.30
(You save $28.35 )
(No reviews yet)
Width:
5.00 (in)
Height:
2.00 (in)
Depth:
5.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

ROTECH™ STEERING SYSTEM

ROTECH - X16
T71FC - helm
X34 - 90° bezel
M66 - 16' steering cable

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

FEATURES AND TECHNICAL SPECIFICATIONS:

  • Fast connect, simple installation
  • All stainless steel cable output ends
  • Corrosion resistant materials
  • Particulary suitable where clearance is limited
  • Standard 3/4" tapered shaft
  • Lock-to-lock steering wheel turns: approx. 3,8
  • Stroke: 9" (228 mm)
  • Maximum allowable steering wheel diameter: 16" (406 mm)
  • Minimum steering cable bend radius: 7.9" (200 mm)
  • Minimal feedback
  • Compact for mounting
  • T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat
  • For boats faster than 50 mph the twin cable steering system T72FC is recommended
  • Exceeds EN 28848 safety standards
  • Exceeds ABYC P17 safety standards



**The wheel is not included

Specifications:

  • Cable Length (Feet): 16'
  • Box Dimensions: 2"H x 5"W x 5"L WT: 30.05 lbs
  • UPC: 702755019732
Warranty
Manufacturer's warranty: this item is covered by Uflex USA's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
ROTECH16FC
