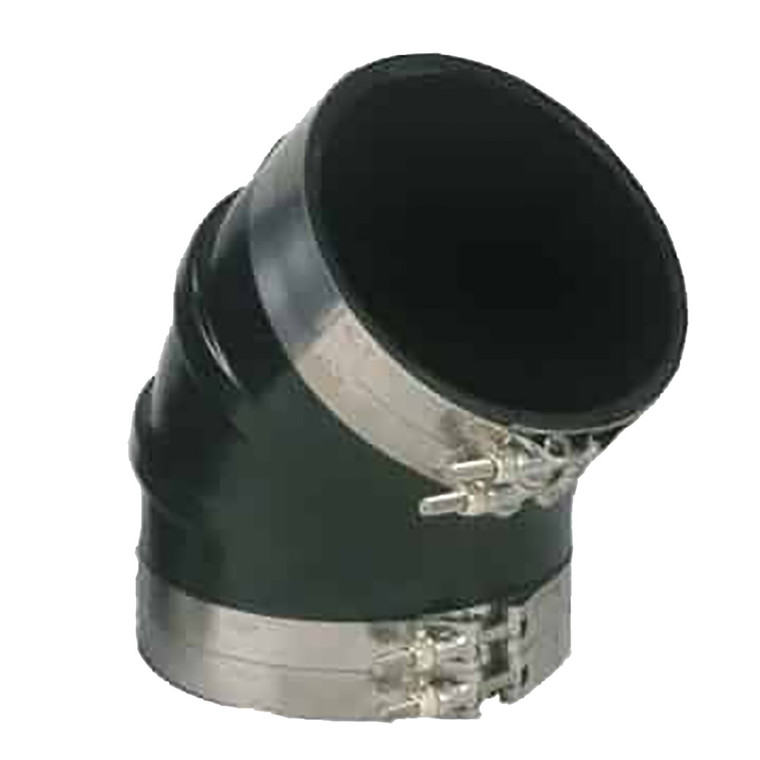

Trident Marine 8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w\/4 T-Bolt Clamps [TRL-845-S\/S]

Trident Marine 8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-845-S/S]

Trident Marine
SKU:
MCS-100832
|
UPC:
704917001524
$233.95
$329.58
(You save $95.63 )
(No reviews yet)
Width:
10.00 (in)
Height:
9.00 (in)
Depth:
15.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

8" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 250°F (121°C)

Specifications:

  • Inner Diameter: (inch) 8” / (mm) 203
  • Outer Diamter: (inch) 8.74" / (mm) 222.0
  • A: (inch) 2.25” / (mm) 57.2
  • B: (inch) 2.25” / (mm) 57.2
  • C: (inch) 8.25” / (mm) 209.5
  • W: (inch) 0.37” / (mm) 9.4
  • Elbow Degree: 45 degrees
  • Weight: (Lb/Ea) 4.3 / (Kg/Ea) 1.95

Specifications:

  • ID Diameter (inches): 8"
  • Box Dimensions: 9"H x 10"W x 15"L WT: 6 lbs
  • UPC: 704917001524

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Trident Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
TRL-845-S/S
