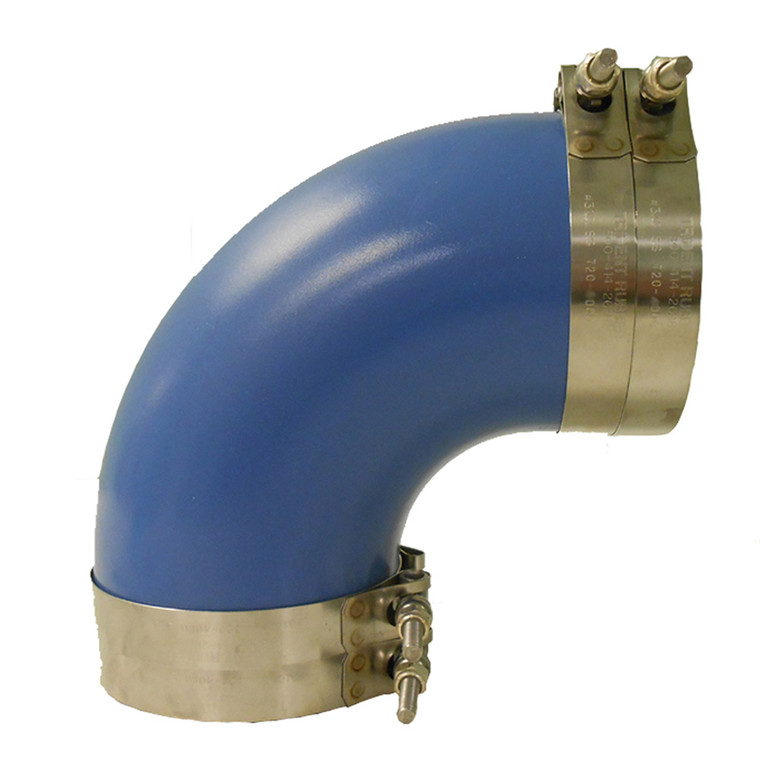

Trident Marine 6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [290V6000-S/S]
6" ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps
Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside.
Features:
- Four stainless steel t-bolt clamps
- Very high temp silicone/EDPM blend rubber - molded
- This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
- Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
- Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous
Construction:
- Color: Blue
- Reinforcement: Reinforcing ribs on 6” I.D. and above
- Temperature Range: up to 350°F (177°C)
Specifications:
- Inner Diameter: (inch) 6” / 152.4 mm
- A: (inch) 7” / (mm) 178
- B: (inch) 7” / (mm) 178
- C: (inch) 2.25” / (mm) 57.2
- D: (inch) 2" / (mm) 57.2
- R: (inch) 1.75” / (mm) 44.5
- W: (inch) 0.25" / (mm) 6.4
- Elbow Degree: 90 degrees
Specifications:
- ID Diameter (inches): 6"
- Box Dimensions: 8"H x 10"W x 15"L WT: 5 lbs
- UPC: 704917002125
Quick Guide (pdf)
Manufacturer's warranty: this item is covered by Trident Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
- MPN:
- 290V6000-S/S
