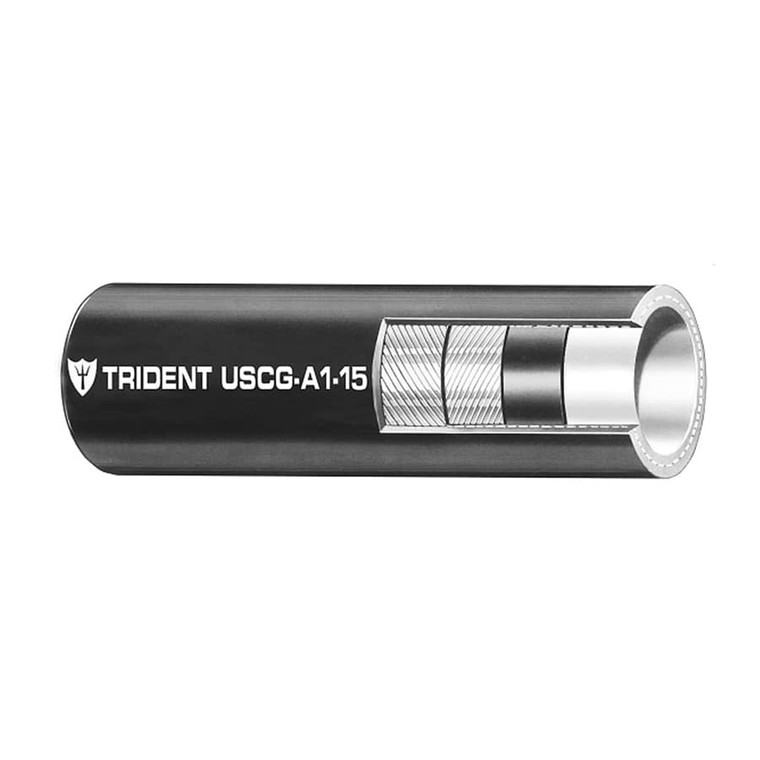

Trident Marine 3\/8" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot [365-0386-FT]

Trident Marine 3/8" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot [365-0386-FT]

Trident Marine
SKU:
MCS-99612
$6.95
$9.99
(You save $3.04 )
(No reviews yet)
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

3/8" Low Permeation Type A1-15 Fuel Line Hose - Black - Sold by the Foot

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation, and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

  • Sold by the foot
  • Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
  • Also provides excellent bend-ability
  • NMMA Type Accepted & CE certified

Applications:

  • Marine Fuel Hose (distribution, return, vent and transfer)
  • For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

  • Tube: Nylon Internal Barrier, NBR
  • Cover: NBR/PVC Blend
  • Reinforcement: Polyester 2 spiral
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)

Specifications:

  • Inner Diameter: (inch) 3/8" / (mm) 9.50
  • Outer Diameter: (inch) 0.681 / (mm) 17.3
  • Burst Pressure: (psi) 400 / (mpa) 2.76
  • Working Pressure: (psi) 100 / (mpa) 0.69
  • Bend Radius: (inch) 2" / (mm) 50.8
  • Weight: (lb/100 ft.) 15.6 / (kg/m) 0.233
  • Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • ID Diameter (inches): 3/8"
  • Length (Feet): Sold By The Foot
  • Box Dimensions: 1"H x 1"W x 1"L WT: 0.17 lbs

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Trident Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
365-0386-FT
