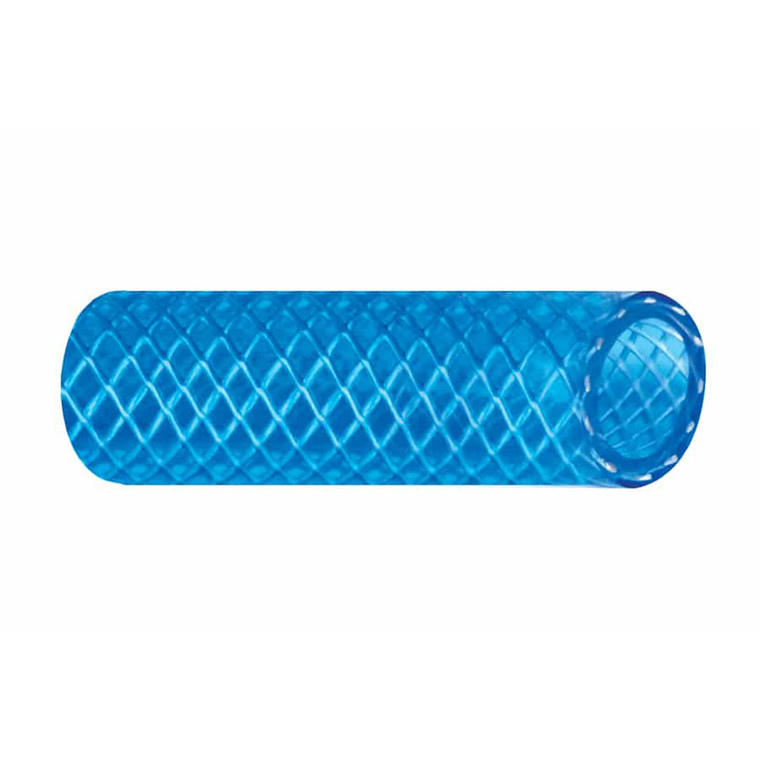

Trident Marine 3\/4" x 50 Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue [165-0346]

Trident Marine 3/4" x 50 Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue [165-0346]

Trident Marine
SKU:
MCS-98806
|
UPC:
704917023984
$88.95
$121.74
(You save $32.79 )
(No reviews yet)
Width:
18.00 (in)
Height:
5.00 (in)
Depth:
18.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

3/4" x 50' Boxed Reinforced PVC (FDA) Cold Water Feed Line Hose - Drinking Water Safe - Translucent Blue

Trident 165 Series Blue - polyester reinforced PVC hose for "Cold Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures as low as -18.4ºF (- 28ºC) and can handle pressures up to 250 psi (varies based on i.d size).

Features:

  • The Blue cover allows for easy identification of "Cold Water" lines on your boat
  • Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility
  • This hose is safe for use with drinking water

Application:

  • Perfect for cold pressurized applications, water feed, drains, and vent lines

Construction:

  • Tube & Cover: Clear FDA tube
  • Color: Blue Transparent
  • Reinforcement: Polyester
  • Temperature Range: -18°F to 149°F (-28°C to 65°C)
  • Length: 50’ (15.24m)

Specifications:

  • Inner Diameter: (inch) 3/4" / (mm) 19
  • Outer Diameter: (inch) 1 / (mm) 25.4
  • Working Pressure: (PSI Vac In./Hg) 220 / (bar) 15
  • Bend Radius: (inch) 1.5" / (mm) 38

*Burst Pressure is 4 x Working Pressure

Specifications:

  • Length (Feet): 50'
  • ID Diameter (inches): 3/4"
  • Box Dimensions: 5"H x 18"W x 18"L WT: 11.6 lbs
  • UPC: 704917023984

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Trident Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
165-0346
