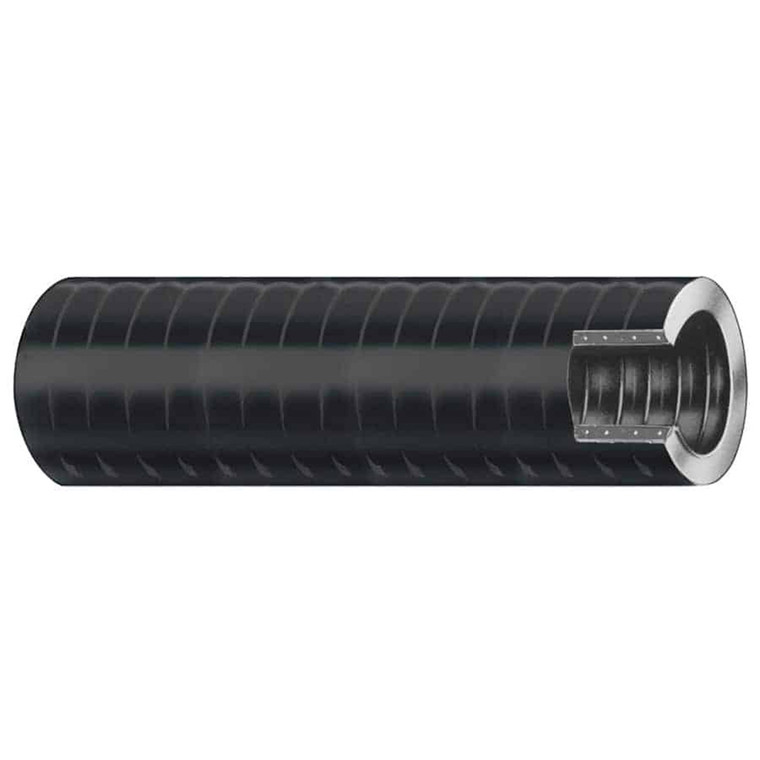

Trident Marine 1-1\/2" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-1126]

Trident Marine 1-1/2" x 50 VAC XHD Bilge Live Well Hose - Hard PVC Helix - Black [149-1126]

Trident Marine
SKU:
MCS-98793
|
UPC:
704917010472
$214.95
$303.87
(You save $88.92 )
(No reviews yet)
Width:
23.00 (in)
Height:
8.00 (in)
Depth:
23.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

1-1/2" x 50' VAC XHD Bilge & Live Well Hose - Hard PVC Helix - Black

Trident VAC XHD Bilge and Live Well Hose. Helical PVC reinforcement provides excellent flexibility and bend radius for live well and heavy-duty bilge applications. It has a smooth outer surface to allow for easy clamping. The excellent bend radius of this product gives you the flexibility of a rubber hose making installations a breeze.

Features:

  • 149 series of hoses is extra flexible

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Hard PVC helix
  • Color: Black
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-48°C)
  • Boxed: 50ft. / (15.2m)
  • Inner Diameter: (inch) 1-1/2" / (mm) 38.1
  • Outer Diameter: (inch) 1.792" / (mm) 45.5
  • Working Pressure: (Psi Vac In./Hg) 28 / (Bar) 1.93
  • Weight: (Lb./ 50 ft.) 22 / (Kg/m) 9.98
  • Bend Radius: (inch) 4" / (mm) 101.6

*Burst Pressure is 4 x Working Pressure

Specifications:

  • ID Diameter (inches): 1-1/2"
  • Box Dimensions: 8"H x 23"W x 23"L WT: 23.2 lbs
  • UPC: 704917010472

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Trident Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
149-1126
