T-M Marine 90-Degree Cockpit Scupper Drain - White [CSD-92-DP]

T-M Marine 90-Degree Cockpit Scupper Drain - White [CSD-92-DP]

T-H Marine Supplies
SKU:
MCS-113650
|
UPC:
733572034158
$74.95
$76.99
(You save $2.04 )
(No reviews yet)
Width:
6.00 (in)
Height:
4.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

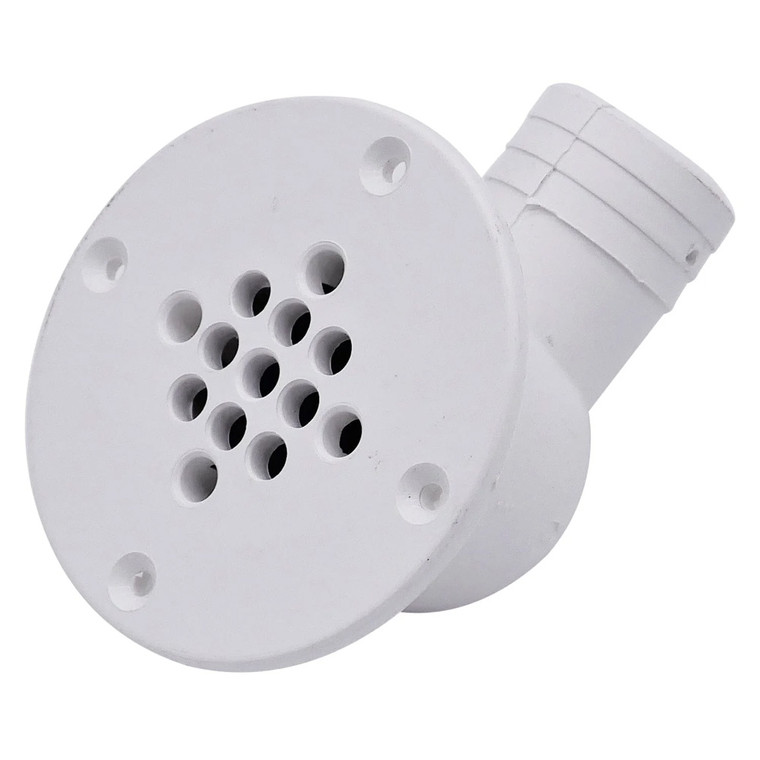

90-Degree Cockpit Scupper Drain - White

This cockpit scupper drain is an affordable and durable solution for draining areas below the waterline. Made from high-strength, UV-stabilized polymer, it features a check ball for effective sealing against reverse water flow and an optional leaf guard to prevent clogging.

This cockpit scupper drain provides an inexpensive alternative to items currently available for draining areas where the discharge is below the waterline. This injection-molded part is high-strength and UV-stabilized to provide value and durability. The check ball contained inside the cockpit scupper drain is molded and then ground smooth and round to provide better sealing against reverse water flow that occurs when backing the boat. The leaf guard model has raised ribs on the head to prevent debris (leaves, scales, etc.) from clogging holes.

The overall diameter of the mounting flange is 3 9/16". The cockpit scupper drain requires a 2 1/2" diameter hole for installation and mounts with four (4) number 8 screws (not furnished). The top of the cockpit scupper drain is removable for cleaning. All outlets fit 1 1/2 inch drain hoses.

Features:

  • Check the ball inside to prevent water from backing up
  • Made of high-strength, UV-stabilized polymer
  • Removable top screen for easy cleaning
  • An optional leaf guard prevents debris from clogging
  • Fits standard 1-1/2" drain hoses

Specifications:

  • 90-Degree Outlet
  • 1-1/2" Hose Diameter
  • Color: White

Specifications:

  • Hose Size: 1-1/2"
  • Material: Polymer
  • Type: Fittings & Hoses
  • Box Dimensions: 4"H x 6"W x 9"L WT: 0.28 lbs
  • UPC: 733572034158
Warranty
Manufacturer's warranty: this item is covered by T-H Marine Supplies' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
CSD-92-DP
