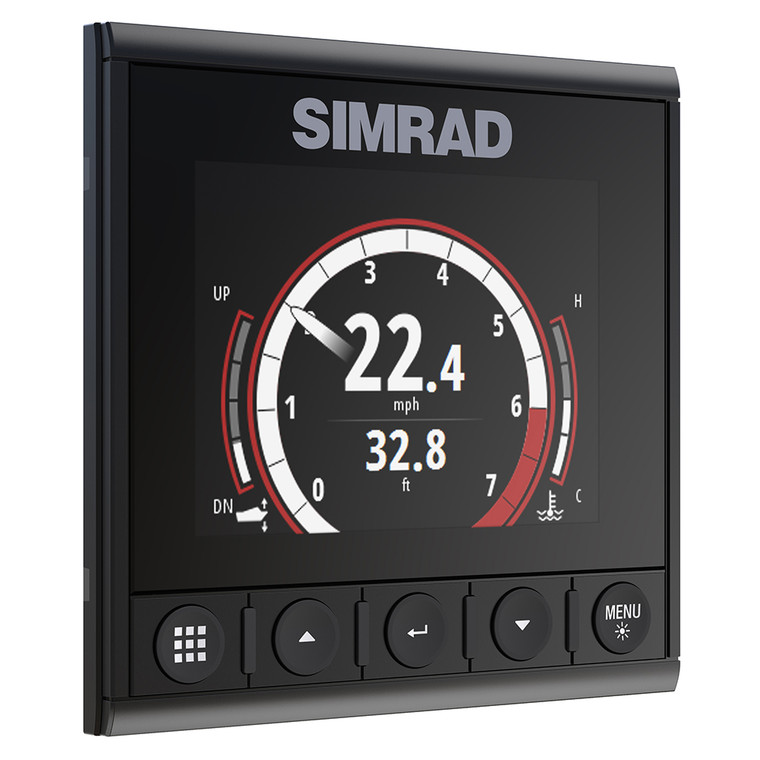

Simrad IS42 Smart Instrument Digital Display [000-13285-001]

Simrad IS42 Smart Instrument Digital Display [000-13285-001]

Simrad
SKU:
MCS-62233
|
UPC:
9420024155103
$649.99
(No reviews yet)
Width:
6.00 (in)
Height:
5.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

IS42 Smart Instrument Digital Display

The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.

Features:

  • Optically bonded 4.1" color display
  • Multi-purpose digital instrument
  • Display wind, speed, depth, engine data, autopilot status and more
  • Intuitive operation
  • Easy installation
  • Add an OP12 keypad for full Simrad autopilot control
  • Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
  • Low-profile glass helm design
  • Low power consumption
  • Certified NMEA 2000® connectivity


Specifications:
  • Dimensions: 118 x 115 x 28mm (4.6" x 4.5" x 1.1")
  • Weight: 0.32kg (0.7lbs)
  • Power Consumption: 1.8 Watts (MAX)
  • Network Load: 3 LEN
  • Color: Black
  • Display Size: 4.1" (diagonal). 4:3 Aspect ratio
  • Display Type: Transmissive TFT-LCD, bonded. White LED backlight
  • Dsiplay Resolution: 320 x 240 pixels
  • Illumination: White for day mode. Red, green, blue or white for night mode
  • Environmental Protection, Waterproof: IPx7
  • Environmental Protection, Humidity: up to 95% RH
  • Compass Safe Distance: 300mm (1.0")
  • Temperature Operating: -15 to +55°C (5°F to +131°F)
  • Temperature Storage: -30 to +70 °C (-22 to +158° F)

Specifications:

  • Instrument Function: Multifunction
  • Box Dimensions: 5"H x 6"W x 9"L WT: 1.6 lbs
  • UPC: 9420024155103
Warranty
Manufacturer's warranty: this item is covered by Simrad's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
000-13285-001
