Shakespeare VHF 4 QuickConnect 3dB f\/QCM Series Mounts [QC-4-T]

Shakespeare VHF 4 QuickConnect 3dB f/QCM Series Mounts [QC-4-T]

Shakespeare
SKU:
MCS-97569
|
UPC:
719441173104
$93.95
$104.99
(You save $11.04 )
(No reviews yet)
Width:
3.00 (in)
Height:
3.00 (in)
Depth:
54.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

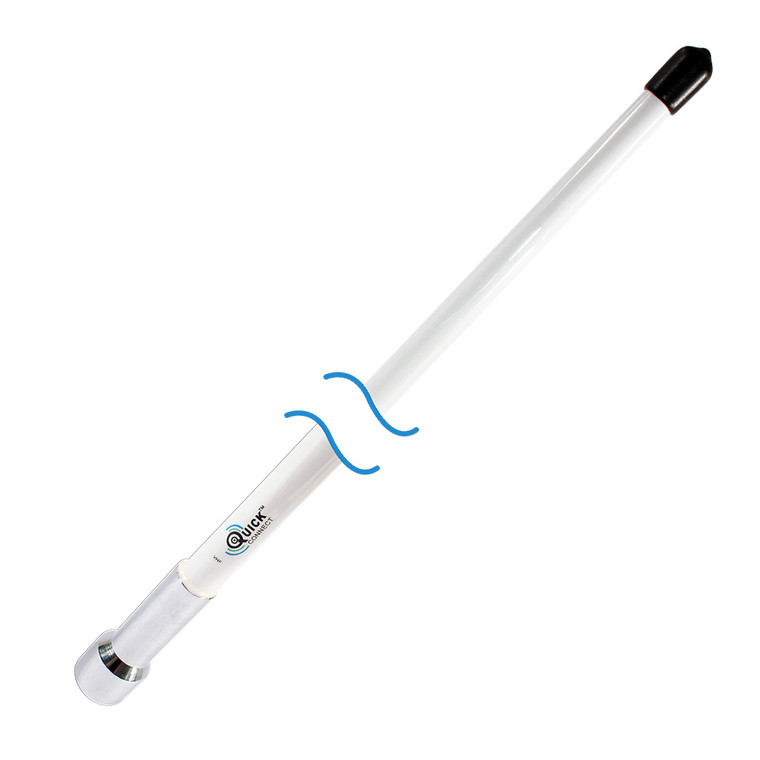

VHF 4' QuickConnect™ 3dB for QCM Series Mounts

QuickConnect™ antennas stem from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas, the QuickConnect™ product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.

Features:

  • QuickConnect™ System - Screw or unscrew the antenna to disconnect or connect
  • Splash Protection Cap - Protects the connector on the mount when the antenna is disconnected
  • Centerpin® PL-259 Connector - An easy crimp-on connector
  • Base connector included for use with QuickConnect™ mounts only
  • Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
  • Maximum input power of 50W
  • The bandwidth of 5 MHz within 2.0:1 VSWR
  • Does not contain a built-in DC ground connection

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 54"L WT: 2.3 lbs
  • UPC: 719441173104
Warranty
Manufacturer's warranty: this item is covered by Shakespeare's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
QC-4-T
