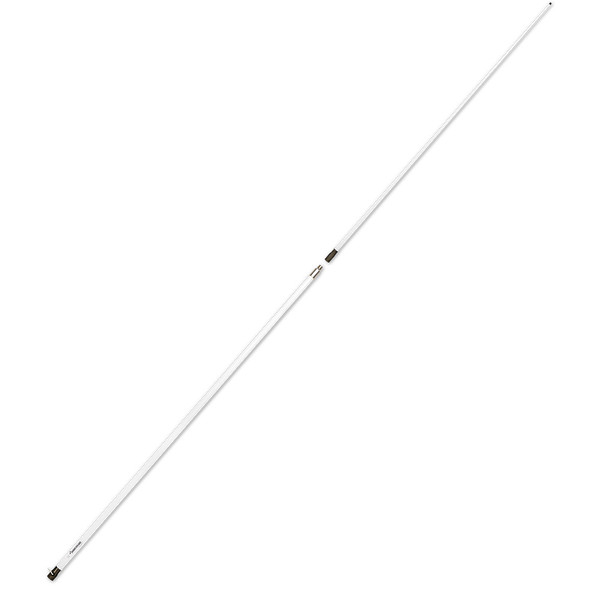

Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain [5230]

Shakespeare Galaxy 5230 14' VHF Antenna - 8dB Gain [5230]

Shakespeare
SKU:
MCS-10640
|
UPC:
719441200084
$611.95
$689.99
(You save $78.04 )
(No reviews yet)
Width:
3.00 (in)
Height:
3.00 (in)
Depth:
95.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

  • 5/8 wave over 1/2 wave dipole
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20 feet of RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
  • Two sections: Base 94", Tip 74" -
  • Shakespeare Limited Warranty: 5 years

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 3 MHz within 2.0:1 VSWR
  • SWR: Nominally 1.5:1 at 156.8 MHz
  • Impedance: 50 ohms
  • Gain: 8 dB
  • Max Input (Watts): 200 watts
  • DC Ground: YES
  • Height (feet): 14
  • Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 168"
  • Box Dimensions: 3"H x 3"W x 95"L WT: 11 lbs
  • UPC: 719441200084

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Shakespeare's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
5230
