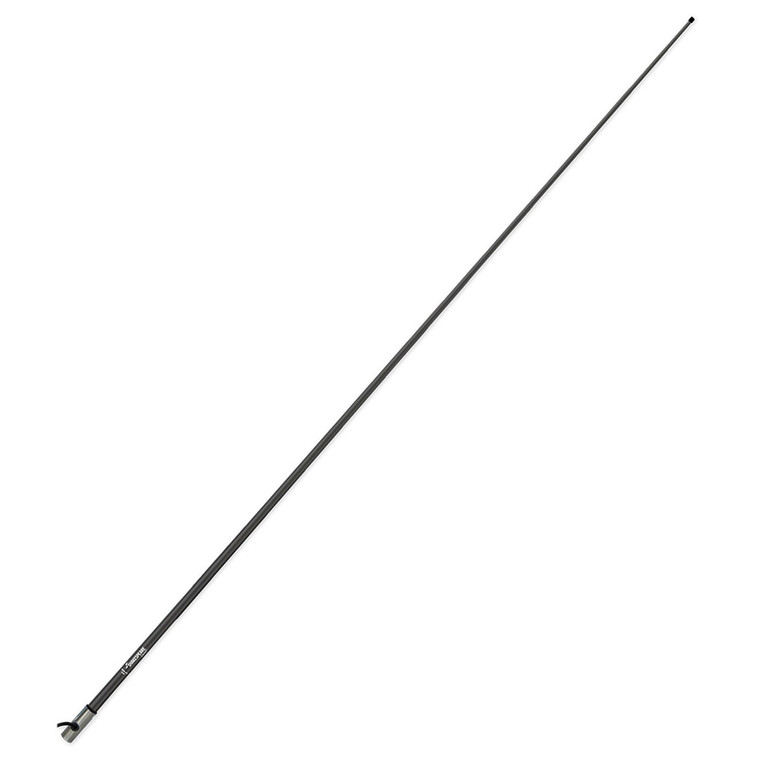

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain [5226-XT]

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain [5226-XT]

Shakespeare
SKU:
MCS-10637
|
UPC:
719441200237
$243.95
$259.99
(You save $16.04 )
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
95.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

  • Collinear-phased 5/8 wave elements
  • Brass and copper elements for maximum range and efficiency
  • Stainless steel ferrule with standard 1"-14 thread
  • 20' RG-8/X low-loss cable plus a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 3 MHz within 2.0:1 VSWR
  • SWR: Mominally 1.5:1 at 156.8 MHz
  • Impedance: 50 ohms
  • Gain: 6 dB
  • Max Input (Watts): 100 watts
  • DC Ground: YES
  • Height (feet): 8
  • Polarization: Vertical

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 96"
  • Box Dimensions: 2"H x 2"W x 95"L WT: 2.4 lbs
  • UPC: 719441200237

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Shakespeare's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
5226-XT
