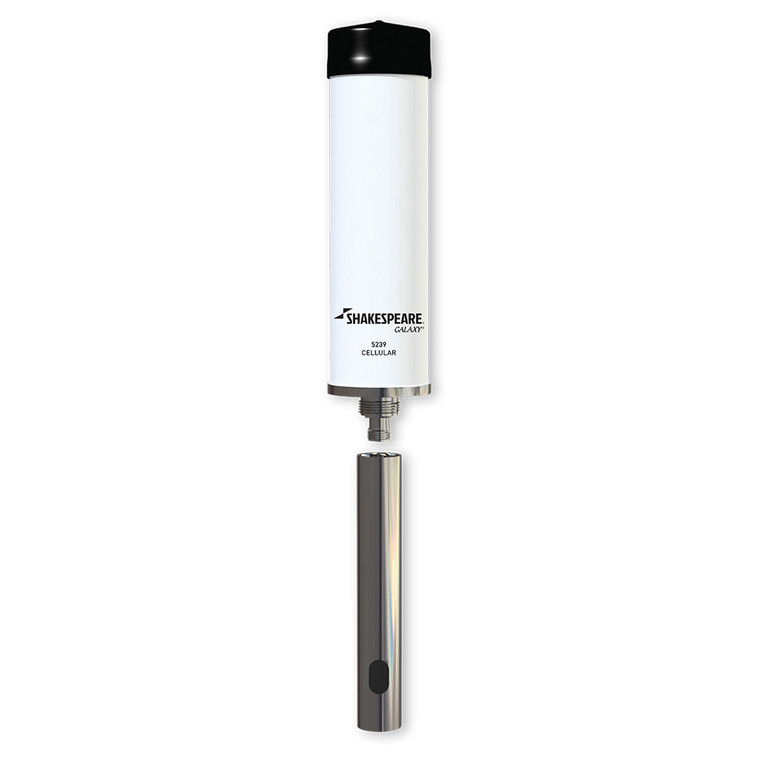

Shakespeare Cellular\/Wi-Fi World Band Galaxy Antenna [5239]

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna [5239]

Shakespeare
SKU:
MCS-55773
|
UPC:
719441900960
$158.95
$244.99
(You save $86.04 )
(No reviews yet)
Width:
4.00 (in)
Height:
4.00 (in)
Depth:
10.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

  • Full Band (698 - 2700 MHz) Broadband
  • 2G/3G/4G and WLAN systems
  • Wi-Fi 802.11n compatible
  • Designed for marine use
  • Omni-directional antenna 3-4 dB Gain.
  • Easy to install
  • Includes FME Cables

Specifications:

  • Frequency: 698-960/1700-2700 MHz
  • Input Impedence: 50 ohm
  • Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
  • VSWR: ≤ 1.8
  • Power Rating (W): 10
  • Polarization Type: Vertical
  • Radiation: Omni-Directional
  • Maximum Power (W): 100
  • Connector Type: N-female
  • Dimension: 9.25" H x 2.625" D
  • Color: White
  • Operating Temperature (F): -22 to +176
  • Mounting: 1" x 14 Thread Mount
  • Ground Plane: Internal
  • Material: Fiberglass

Specifications:

  • Length (Inches): 9.25"
  • Construction: Fiberglass
  • Color: White
  • Box Dimensions: 4"H x 4"W x 10"L WT: 1.8 lbs
  • UPC: 719441900960
Warranty
Manufacturer's warranty: this item is covered by Shakespeare's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
5239
