Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain [5401-XT]

Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain [5401-XT]

Shakespeare
SKU:
MCS-14038
|
UPC:
719441100612
$217.95
$249.99
(You save $32.04 )
(No reviews yet)
Width:
3.00 (in)
Height:
3.00 (in)
Depth:
55.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

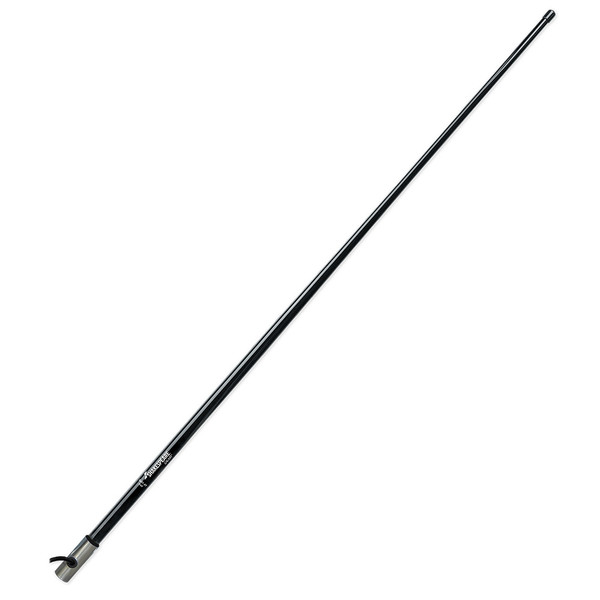

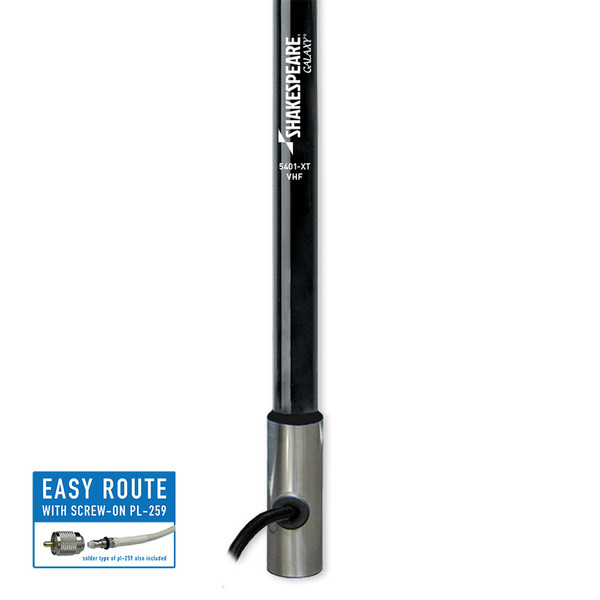

5401-XT Galaxy 4' Antenna - 3dB Gain

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

Features:

  • Center-fed 1/2 wave coaxial sleeve
  • Brass and copper elements for maximum range
  • Stainless steel ferrule with standard 1"-14 thread
  • Includes 20' RG-8/X cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount
  • One section
  • Shakespeare Limited Warranty: 5 years
  • Includes FME Cables

Technical Specifications:

  • Frequency: VHF Marine Band
  • Bandwidth: 5 MHz within 2.0:1 VSWR
  • SWR: Nominally 1.5:1 at 156.8 MHz
  • Gain: 3 dB
  • Max Input (Watts): 50 watts
  • Height (feet): 4

Specifications:

  • Antenna Band: VHF
  • Color: Black
  • Construction: Fiberglass
  • Ferrule Type: Stainless Steel
  • Length (Inches): 48"
  • Box Dimensions: 3"H x 3"W x 55"L WT: 3.1 lbs
  • UPC: 719441100612

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Shakespeare's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
5401-XT
