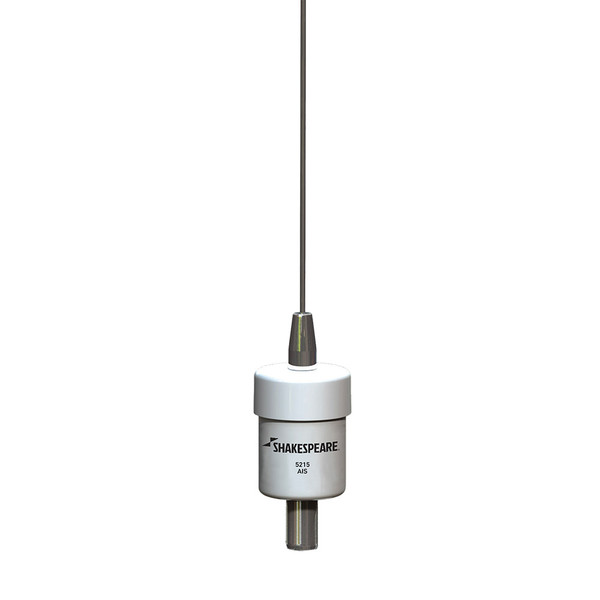

Shakespeare 5215 3' Stainless Steel Whip Antenna [5215]

Shakespeare 5215 3' Stainless Steel Whip Antenna [5215]

Shakespeare
SKU:
MCS-10631
|
UPC:
719441100148
$87.95
$104.99
(You save $17.04 )
(No reviews yet)
Width:
3.00 (in)
Height:
3.00 (in)
Depth:
40.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Shakespeare Style 5215 SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

  • Hermetically sealed, tin-plated copper wire coil
  • Stainless steel body and whip
  • SO-239 connector - cable sold separately
  • Mount: Stainless steel "L" bracket supplied, for mast mounting
  • One section
  • Shakespeare Limited Warranty: 2 years


technical Specifications:


Frequency:VHF Marine band
Bandwidth:7 MHz
SWR:1.5:1 @ 156.8 MHz
Impedance:(Ohms): 50
Gain:3 dB
Max Input (Watts):50
DC Ground:NO
Termination:SO-239 connector
Height (feet):3
Polarization:Vertical
Radiation pattern:Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: Stainless
  • Construction: Stainless Steel
  • Length (Inches): 36"
  • Box Dimensions: 3"H x 3"W x 40"L WT: 1.5 lbs
  • UPC: 719441100148

Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Shakespeare's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
5215
