Schaefer Twin Sheet Lead 25x3MM - Black [32-77]

Schaefer Twin Sheet Lead 25x3MM - Black [32-77]

Schaefer Marine
SKU:
MCS-91831
|
UPC:
740507003707
$328.95
$410.10
(You save $81.15 )
(No reviews yet)
Width:
4.00 (in)
Height:
2.00 (in)
Depth:
4.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

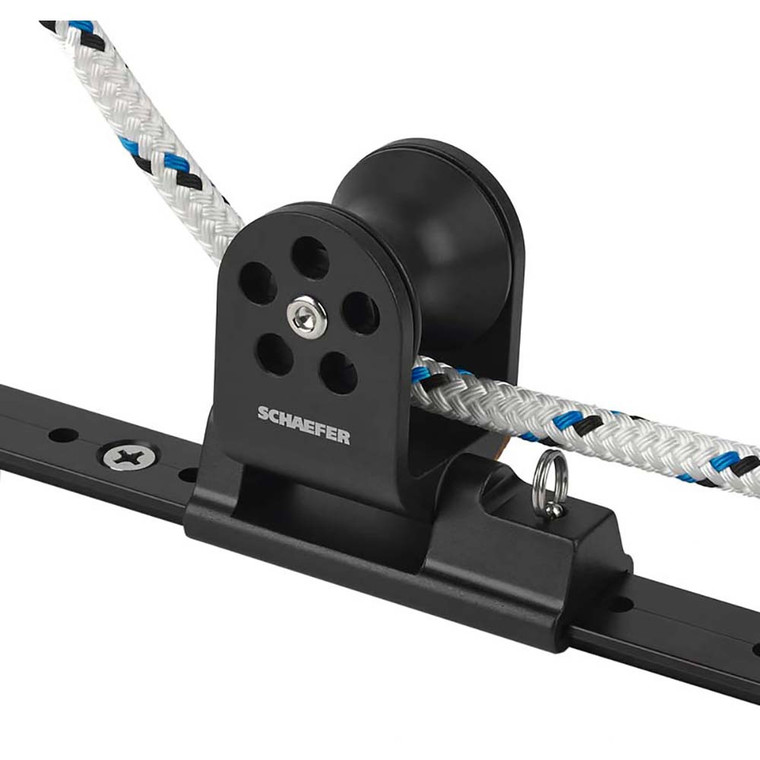

Twin Sheet Lead 25x3MM - Black

32-77 Twin Sheet Lead block. The anodized aluminum body is machined from 6061-T6 aluminum and articulates to ensure a proper lead. Anodized aluminum sheave runs on Nomex™/Teflon™ bearing for a low-friction high strength sheave. Pin stop makes adjustment simple.

Features:

  • Track Size 1" x 1/8" (25 mm x 3 mm)
  • Boat Size Up To LOA 29'
  • Disp. 5000 lbs.
  • Sail Area 315 sq. ft (8m, 2270 kg, 29 m2)
  • Sheave Dia. 1-1/2" (38 mm)
  • Max Line (2) 1/2" (13 mm)
  • L 3-1/2" (89 mm)
  • W 1-11/32" (34 mm)
  • H 3-9/32" (83 mm)
  • Bearing Height 1-29/32" (49 mm)
  • SWL 2500 lbs. (1135 kg)
  • Weight 10 oz. (284 g)

Warranty
Manufacturer's warranty: this item is covered by Schaefer Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
32-77
