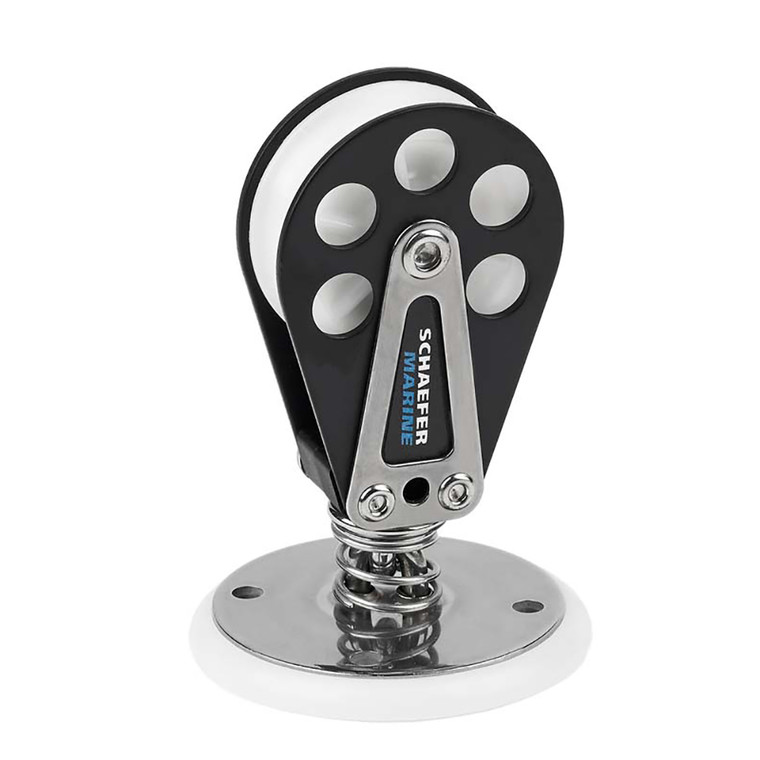

Schaefer Stand-Up Swivel w\/Aluminum Cheeks [504-62]

Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

Schaefer Marine
SKU:
MCS-74717
|
UPC:
740507011818
$198.95
$234.20
(You save $35.25 )
(No reviews yet)
Width:
3.00 (in)
Height:
3.00 (in)
Depth:
5.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Stand-Up Swivel with Aluminum Cheeks

Delrin™ sheave ensures smooth operation and high safe working load.

Specifications:

  • Sheave Dia. 2" (51 mm)
  • Max Line 7/16" (11 mm)
  • Diameter includes urethane base 2-7/8" (73 mm)
  • Height 4-1/32" (103 mm)
  • H2 2-3/32" (54 mm)
  • Fastener Size (4), #10 RH (5 mm)
  • C/C 1-12/31" (36 mm)
  • SWL 1750 lbs. (790 kg)
  • Weight Alum. 7.0 oz. (198 g)
  • #97-48 BACKING PLATE SOLD SEPARATELY

Warranty
Manufacturer's warranty: this item is covered by Schaefer Marine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
504-62
