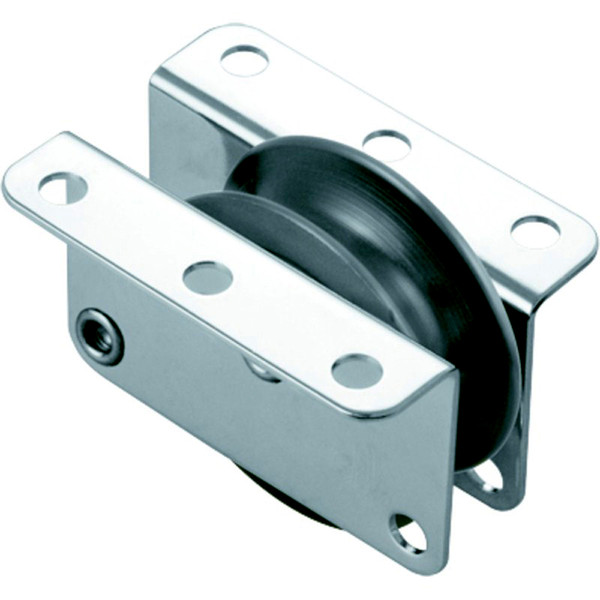

Ronstan Series 40 High Load Exit Box f\/Single Rope & Wire [RF41712]

Ronstan Series 40 High Load Exit Box f/Single Rope & Wire [RF41712]

Ronstan
SKU:
MCS-55209
|
UPC:
9316800335121
$37.33
$43.92
(You save $6.59 )
(No reviews yet)
Width:
2.00 (in)
Height:
1.00 (in)
Depth:
3.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Series 40 High Load Exit Box for Single Rope or Wire

Plain bearing sheaves are ideal for halyards and other applications where high static loads are likely to be encountered

Applications:

  • Ideal applications where lines (rope or wire) need to be led through decks, bulkheads or spars minimizing friction and chafing


Materials:
  • Nylatron®l sheave
  • Grade 316 Stainless Steel cheeks


Specifications:
Sheave Ø: 40.0mm(1-9/16")
Max. Rope Ø:10.0mm(3/8")
Max. Cable Ø: 5.0mm(3/16")
B.L.: 1,000kg(2,200lbs)

Specifications:

  • Color: Stainless
  • Box Dimensions: 1"H x 2"W x 3"L WT: 0.16 lbs
  • UPC: 9316800335121
Warranty
Manufacturer's warranty: this item is covered by Ronstan's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
RF41712
