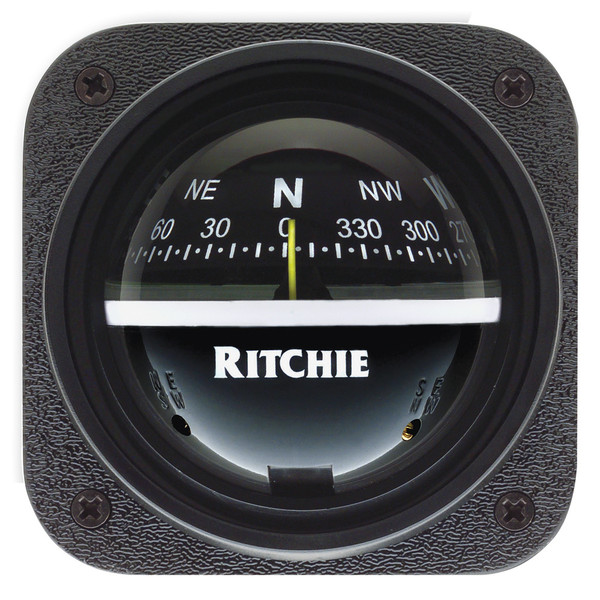

Ritchie V-537 Explorer Compass - Bulkhead Mount - Black Dial [V-537]

Ritchie V-537 Explorer Compass - Bulkhead Mount - Black Dial [V-537]

Ritchie
SKU:
MCS-36538
|
UPC:
010342161192
$99.99
(No reviews yet)
Width:
6.00 (in)
Height:
5.00 (in)
Depth:
7.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Explorer Compass

Features:

  • 2 3/4″ (70 mm) Easy to Read Direct Reading Dial
  • Viewing is adjustable to 30 / Heel angle to 25
  • Easily Installed w/4 mounting screws provided, Fits 3″ (762 mm) Mounting Hole.
  • Built-in Compensators to Easily Adjust for Deviation
  • 12v Night Illumination
  • 100% Repairable
  • Exclusive 5-Year Ritchie Warranty

Notes:

Comes standard with 12v lighting. 24v lighting option is available.

Some custom built OEM models may have different lighting.

Specifications:

  • Read: Front
  • Mounting Style: Bulkhead
  • Lubber Lines: Yes
  • Backlight: Yes
  • Box Dimensions: 5"H x 6"W x 7"L WT: 1.01 lbs
  • UPC: 010342161192

Quick Guide (pdf)
Owner's Manual (pdf)
Warranty
Manufacturer's warranty: this item is covered by Ritchie's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
V-537
