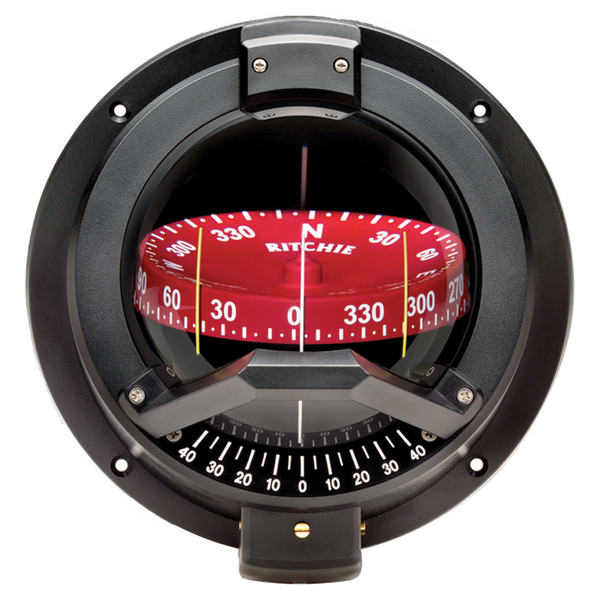

Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black [BN-202]
Ritchie
$512.99
Navigator Compass
Features:
- 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer
- When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.

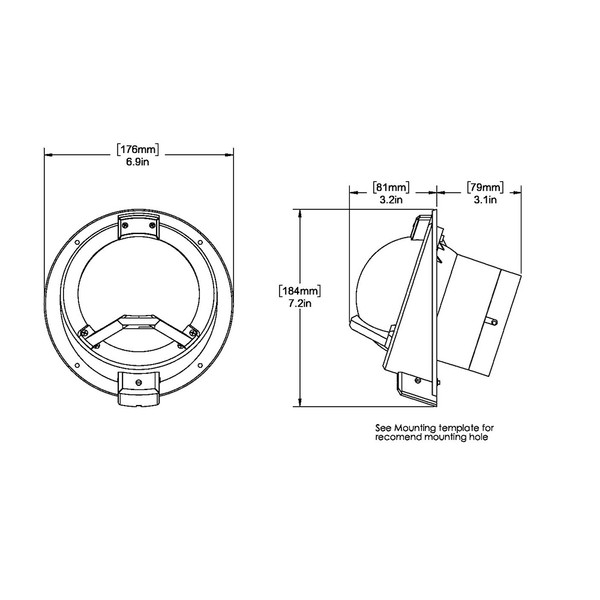

- Easily Installed, Fits 5.75″ (146 mm) Mounting Hole
- Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
- Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
- Fiberglass Reinforced Bowl
- 45 degree Lubber Lines
- Exclusive Built-in 12v Amber LED Lighting
- Built-in Compensators to Easily Adjust for Deviation
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)
Notes:
12v lighting standard - 24 & 32v lighting options are available.
Specifications:
- Mounting Style: Bulkhead
- Lubber Lines: Yes
- Read: Both
- Backlight: Yes
- Box Dimensions: 7"H x 8"W x 8"L WT: 3.13 lbs
- UPC: 010342150301
Quick Guide (pdf)
Owner's Manual (pdf)
Manufacturer's warranty: this item is covered by Ritchie's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
- MPN:
- BN-202
- Antares 44 | PDQ 44:
- Used on Antares catamarans – ask us about fit for your boat
