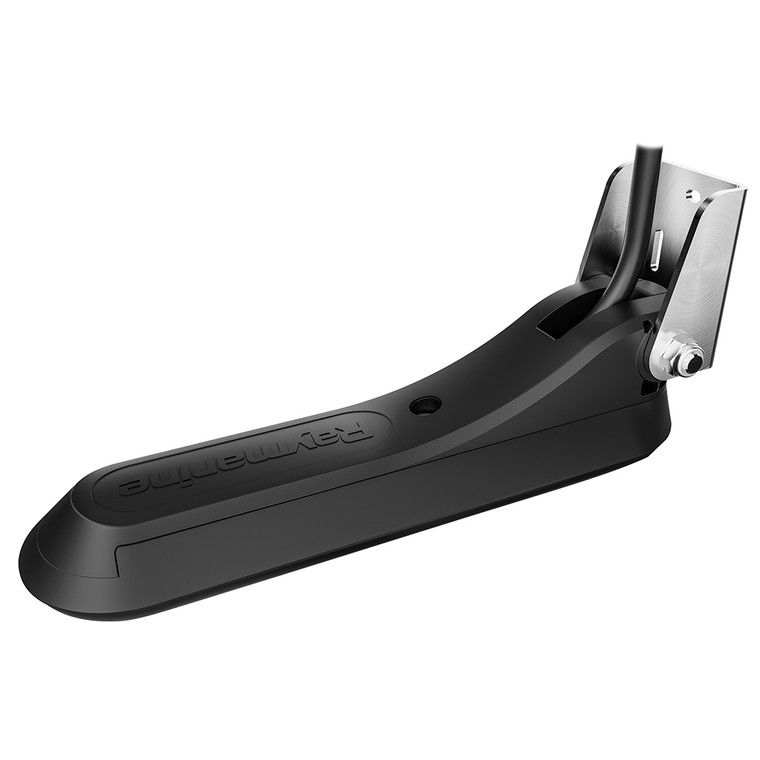

Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer [A80464]

Raymarine RV-100 RealVision 3D All-In-One Transom Mount Transducer [A80464]

Raymarine
SKU:
MCS-65573
|
UPC:
723193816523
$414.95
$424.99
(You save $10.04 )
(No reviews yet)
Width:
11.00 (in)
Height:
5.00 (in)
Depth:
14.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

RealVision 3D™ All-In-One Transom Mount Transducer

Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells and while maneuvering. The RV-100 also has a built-in fast response water temperature sensor for quick, accurate readings.

The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

The RV-100 can also be removed from the transom bracket and attached to the stainless Jack-Plate mounting bracket (sold separately) which is ideal for bass boats, flats boats and skiffs. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (sold separately)

What’s in the Box?

  • RV-100 All-In-One Transom Mount Transducer with 8-meter (26-foot) cable
  • Transom bracket
  • Mounting hardware
  • Installation instructions

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Transom
  • Imaging: Standard/Down/Side
  • Chirp: High
  • Cable Length (Feet): 26'
  • Pins: 25
  • Box Dimensions: 5"H x 11"W x 14"L WT: 5.3 lbs
  • UPC: 723193816523
Warranty
Manufacturer's warranty: this item is covered by Raymarine's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
A80464
