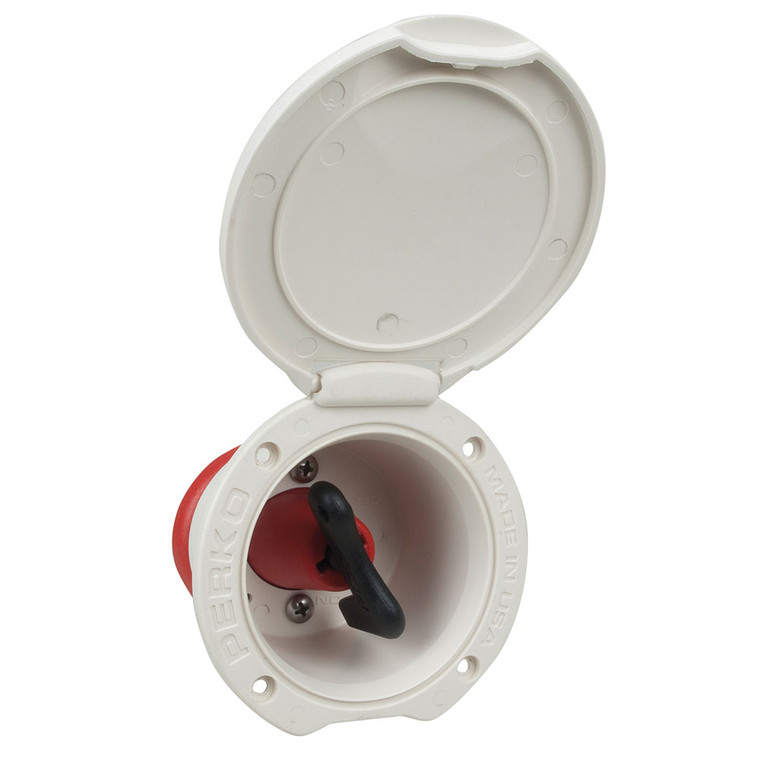

Perko Single Battery Disconnect Switch - Cup Mount [9621DPC]

Perko Single Battery Disconnect Switch - Cup Mount [9621DPC]

Perko
SKU:
MCS-69974
|
UPC:
085226784286
$63.95
$84.53
(You save $20.58 )
(No reviews yet)
Width:
7.00 (in)
Height:
5.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Single Battery Disconnect Switch - Cup Mount

The Perko Single Battery Disconnect Switch permits the battery to be shut off from the electrical system when the vessel is not in use. They can also serve as an emergency main disconnect switch in the event of an electrical problem.

The Single Battery Disconnect Switch is Ignition Protected.

Materials & Finish

  • Red polycarbonate polymer body
  • Black polymer actuator key
  • Nickel plated terminals

Features

  • Small compact size
  • Unique oval shape mounts in a round hole
  • Removable actuator key adds additional security

Technical Information

  • Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
  • Cup Mount Installation Hole Size: 3"
  • For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
  • Ignition Protected
  • Face Dimensions: 3" x 2-1/2

Warranty
Manufacturer's warranty: this item is covered by Perko's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
9621DPC
