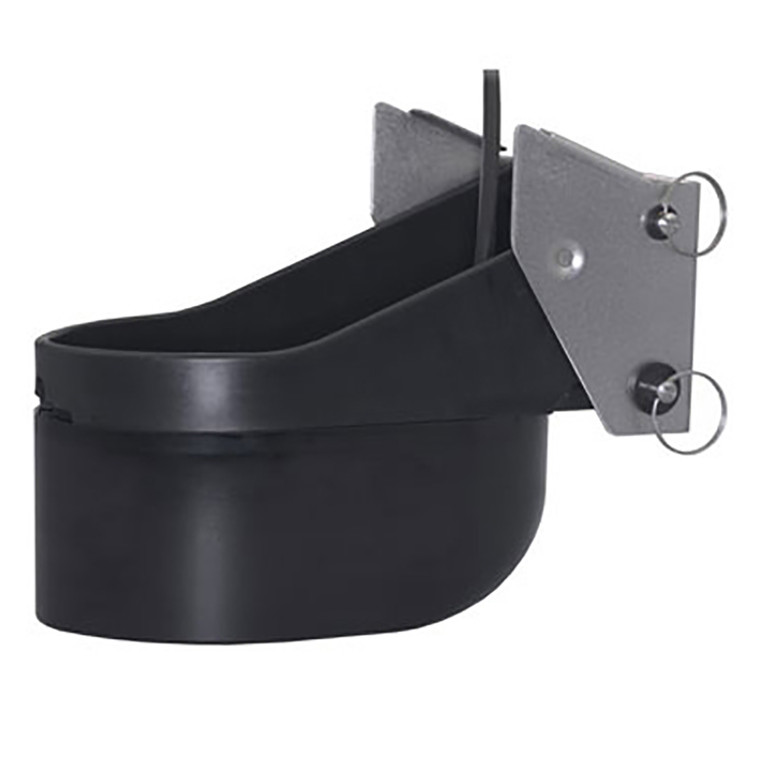

Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

Navico
SKU:
MCS-65165
|
UPC:
9420024161814
$2,339.99
(No reviews yet)
Width:
11.00 (in)
Height:
8.00 (in)
Depth:
12.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

xSonic TM275LH-W TM CHIRP Transducer Wide Angle

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25x beam width for the best resolution and coverage in the upper water column and in shallower depths.

Features:

  • 42-65 kHz Low CHIRP with 25-16x beam width
  • 150-250 kHz High CHIRP with wide 25° beam for excellent fish targets
  • Up to 1200 m (4000 ft) range with Low CHIRP
  • 8 internal broadband ceramics
  • Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets)
  • Suitable for fiberglass, wood and metal hulls
  • Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
  • Recommended for use with the BSM-3 broadband sounder module

Specifications:

  • Speed Included: No
  • Pins: 9
  • Mounting Style: Transom
  • Imaging: Standard
  • Chirp: Low/High Wide
  • Cable Length (Feet): 33'
  • Temperature: Yes
  • Box Dimensions: 8"H x 11"W x 12"L WT: 11.4 lbs
  • UPC: 9420024161814
Warranty
Manufacturer's warranty: this item is covered by Navico's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
000-13770-001
