Navico ForwardScan Transducer Kit w\/Sleeve & Plug [000-11674-001]

Navico ForwardScan Transducer Kit w/Sleeve & Plug [000-11674-001]

Navico
SKU:
MCS-55523
|
UPC:
9420024133194
$839.99
(No reviews yet)
Width:
8.00 (in)
Height:
5.00 (in)
Depth:
12.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

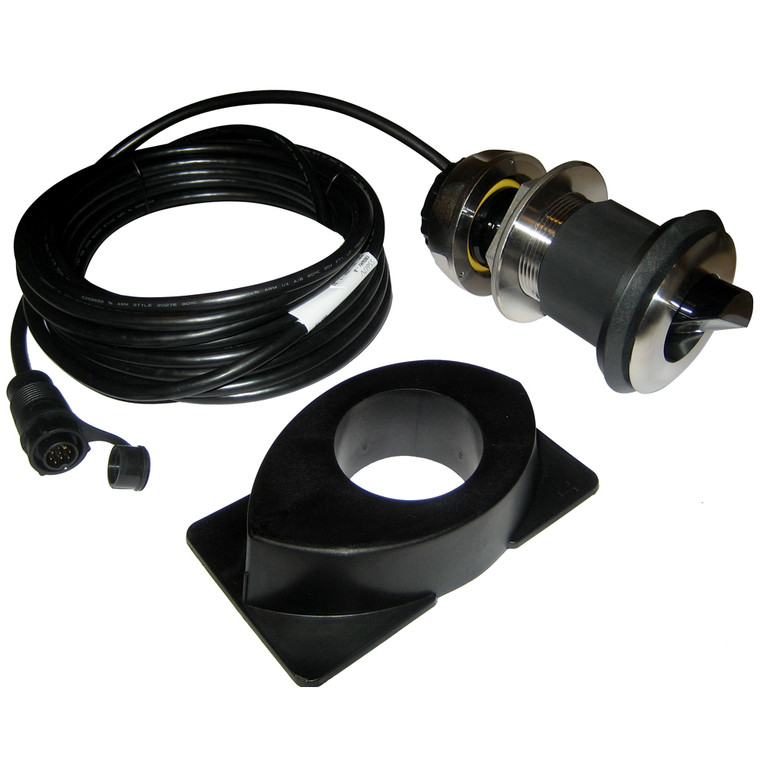

ForwardScan® Transducer Kit with Sleeve & Plug

Know what lies ahead, with ForwardScan. This forward-looking sonar provides a clear two-dimensional image of the bottom in front of your vessel, allowing you to navigate shallow or poorly-charted waters with confidence. With real-time updates and a forward-looking view of up to eight times your current depth, ForwardScan lets you relax and enjoy a safer day on the water.

The ForwardScan transducer is compatible with Simrad NSS evo2 and NSO evo2 MFD systems, and can be easily installed on almost any craft.

Features:

  • Easy to use
  • Forward-looking 2D sonar imaging
  • Bottom Color Tracking for a simplified bottom view
  • Heading Line View combines ForwardScan depth data into heading line on charts
  • Shallow depth alarm
  • Maximum forward view of 8X current depth, nominally 4-5X current depth
    Operates at 180kHz, reducing interference from traditional 200kHz echosounders
  • Built-in temperature sensor
  • 50.8mm (2") stainless steel through-hull fitting
  • Connects directly to Simrad NSS evo2, or NSO evo2 via SonarHub sounder module

Specifications:

  • Temperature: No
  • Speed Included: No
  • Pins: 9
  • Mounting Style: Thru-Hull
  • Imaging: Down/Forward
  • Chirp: No
  • Cable Length (Feet): 33'
  • Box Dimensions: 5"H x 8"W x 12"L WT: 4.77 lbs
  • UPC: 9420024133194

Owner's Manual (pdf)
Warranty
Manufacturer's warranty: this item is covered by Navico's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
000-11674-001
Antares 44 | PDQ 44:
Used on Antares catamarans – ask us about fit for your boat
