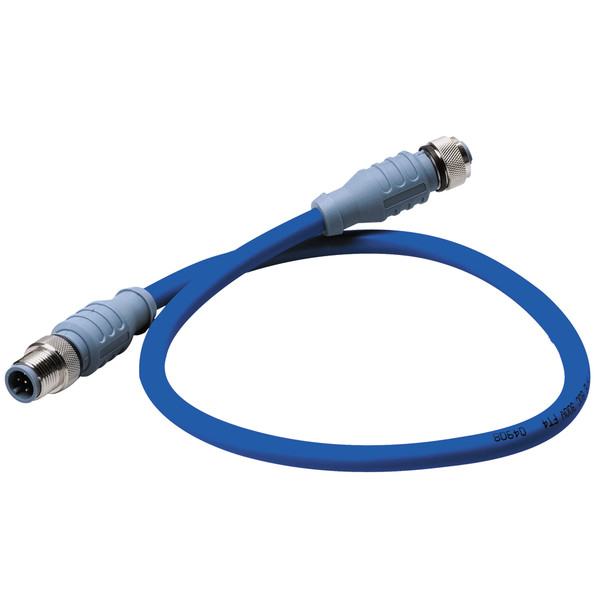

Maretron Mid Double-Ended Cordset - 2 Meter - Blue [DM-DB1-DF-02.0]
Maretron
$55.00
Maretron Mid Double-Ended Cordset - 2 M Blue
Mechanical:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 0.59"
Electrical - Current Rating: 4.0 Amps
- Voltage Rating: 250 V
Cable - Outer Jacket Mat/Color: PVC/Gray
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
- Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL - Protection Class: IEC IP68, NEMA 1,3,4,6P
- Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
APPROVALS - (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
- NMEA: NMEA 2000 Approved
- IEC: IEC 61162-3
Specifications:
- Connection Gender: Male-Female
- Data Interface: NMEA 2000
- Cable Length (Meters): 2m
- NMEA 2000 Connectors: Backbone/Drop Cables
- Box Dimensions: 1"H x 7"W x 8"L WT: 0.5 lbs
- UPC: 873804001913
Manufacturer's warranty: this item is covered by Maretron's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
- MPN:
- DM-DB1-DF-02.0
