Lowrance Fuel Flow Sensor w\/10' Cable & T-Connector [000-11517-001]

Lowrance Fuel Flow Sensor w/10' Cable & T-Connector [000-11517-001]

Lowrance
SKU:
MCS-54188
|
UPC:
9420024129852
$239.99
(No reviews yet)
Width:
4.00 (in)
Height:
2.00 (in)
Depth:
10.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

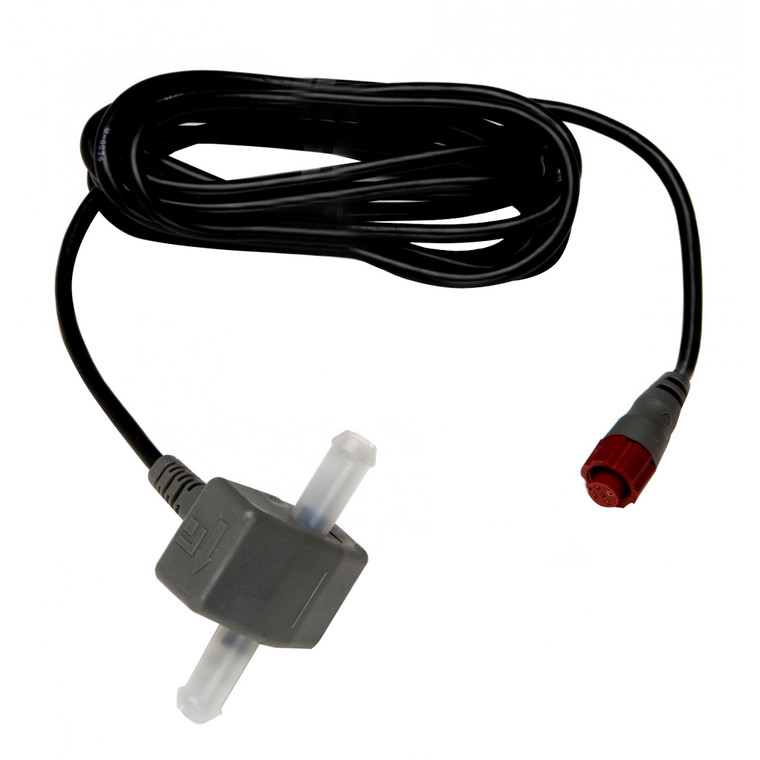

Fuel Flow Sensor with 10' cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

  • Fuel Flow
  • Tank Fuel Used
  • Trip Fuel Used
  • Seasonal Fuel Used


Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes

Specifications:

  • Type: Misc
  • Box Dimensions: 2"H x 4"W x 10"L WT: 0.6 lbs
  • UPC: 9420024129852
Warranty
Manufacturer's warranty: this item is covered by Lowrance's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
000-11517-001
