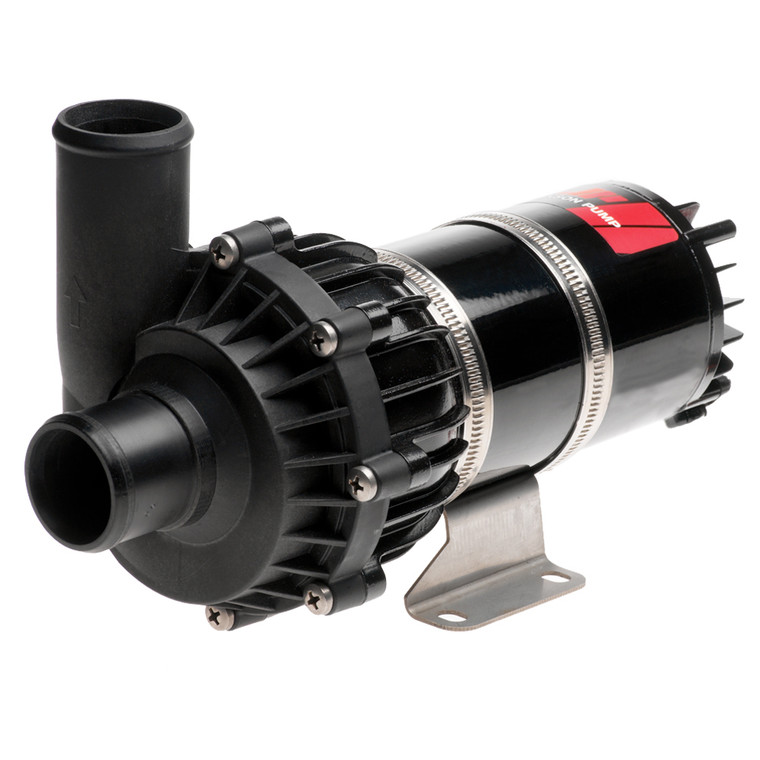

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-1\/2" Outlet [10-24664-09]

Johnson Pump CM90 Circulation Pump - 23.7GPM - 12V - 1-1/2" Outlet [10-24664-09]

Johnson Pump
SKU:
MCS-59557
|
UPC:
7330717012915
$352.95
$557.72
(You save $204.77 )
(No reviews yet)
Width:
7.00 (in)
Height:
6.00 (in)
Depth:
11.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

CM90 Circulation Pump - 23.7GPM - 12V - 1-½" Outlet

A line of compact magnetic driven centrifugal pumps which combine high flow
rates with very low electric current consumption. Suitable for fresh water,
ethylene glycol and salt water circulation.

System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar
Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water
Motor Service Life: More than 5,000 hours at nominal voltage 10,000
start/stops. Interchangeable motor.
Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V
DC for use between 20-32V
Input Power: Max. 125W
Dry Running: 30 minutes
Dimensions: 244mm (L) x 120mm (W) x 150mm (H)
Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2")
Weight: 3.0kg (6.6lbs)
Body: PPA, glass-fiber reinforced
Mounting: Separate universal bracket for flat surfaces

Specifications:

  • Gallons Per Minute: 23.7 GPM
  • Volts: 12v
  • Box Dimensions: 6"H x 7"W x 11"L WT: 6.76 lbs
  • UPC: 7330717012915
Warranty
Manufacturer's warranty: this item is covered by Johnson Pump's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
10-24664-09
