Garmin Transom Mount Depth\/Temp 50\/200kHz - 8-Pin [010-10272-10]

Garmin Transom Mount Depth/Temp 50/200kHz - 8-Pin [010-10272-10]

Garmin
SKU:
MCS-43534
|
UPC:
753759975364
$97.95
$99.99
(You save $2.04 )
(No reviews yet)
Width:
6.00 (in)
Height:
2.00 (in)
Depth:
8.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

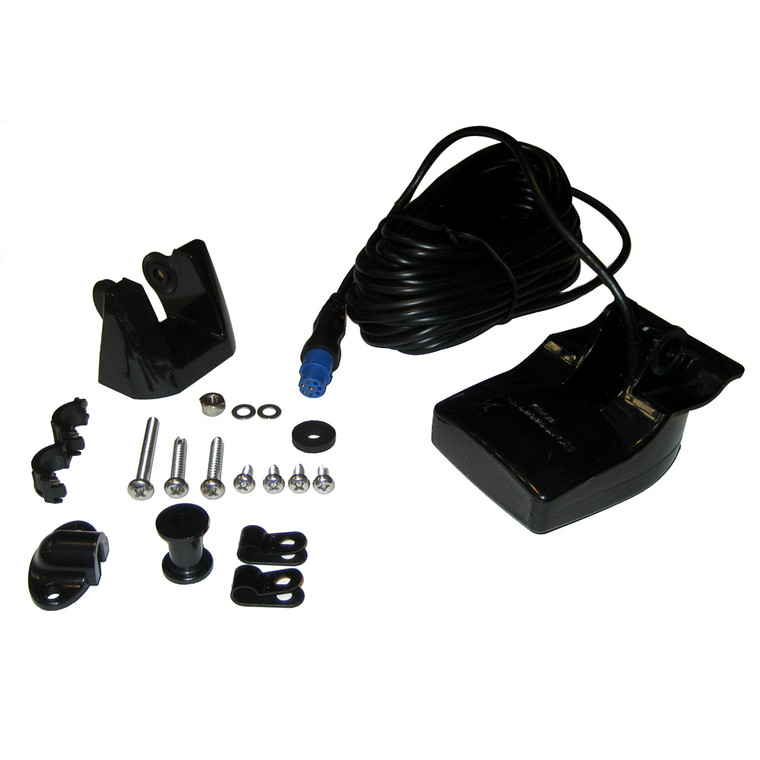

Transom Mount Depth/Temp 50/200kHz - 8-Pin

This plastic transom mount can be used to replace the dual frequency transducers included with many Garmin units.

The 500 W 8-pin transducer has a maximum depth of 1,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 40 to 10 degrees; and mounts on a 0 to 70 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Transom
  • Imaging: Standard
  • Chirp: No
  • Cable Length (Feet): 30'
  • Pins: 8
  • Box Dimensions: 2"H x 6"W x 8"L WT: 1.51 lbs
  • UPC: 753759975364

Owner's Manual (pdf)
Warranty
Manufacturer's warranty: this item is covered by Garmin's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
010-10272-10
