Garmin TM265LH Plastic Transom Mount Transducer w\/Depth & Temp - 12-Pin [010-12378-20]

Garmin TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin [010-12378-20]

Garmin
SKU:
MCS-57381
|
UPC:
753759142407
$1,216.95
$1,329.36
(You save $112.41 )
(No reviews yet)
Width:
10.00 (in)
Height:
8.00 (in)
Depth:
11.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

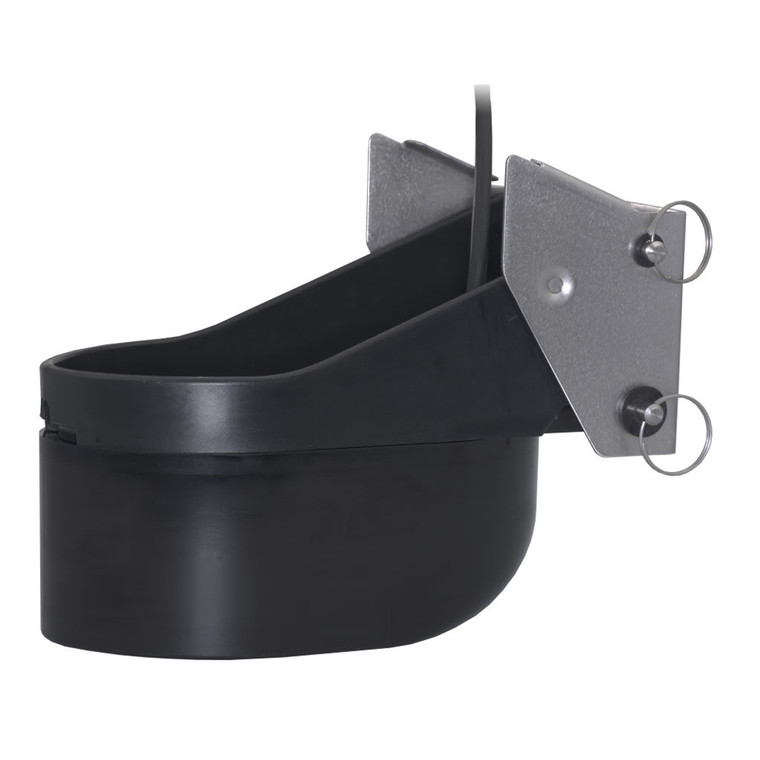

TM265LH Plastic Transom Mount Transducer w/Depth & Temp - 12-Pin

Garmin's plastic transom mount performs well in deep water and provides exceptional bottom and water column detail.

The best performing 1 kW transom mount, this transducer has a maximum depth of 3,000 feet; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees or 6 to 10 degrees; and mounts on a 3 to 21 degree transom.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

Compatible Devices:

  • GPSMAP® 7607xsv, 7608xsv, 7610xsv, 7612xsv, 7616xsv
  • GSD™ 25 Premium Sonar Module

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Pins: 12
  • Mounting Style: Transom
  • Imaging: Standard
  • Chirp: Low/High
  • Cable Length (Feet): 33'
  • Box Dimensions: 8"H x 10"W x 11"L WT: 11.47 lbs
  • UPC: 753759142407

Owner's Manual (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Garmin's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
010-12378-20
