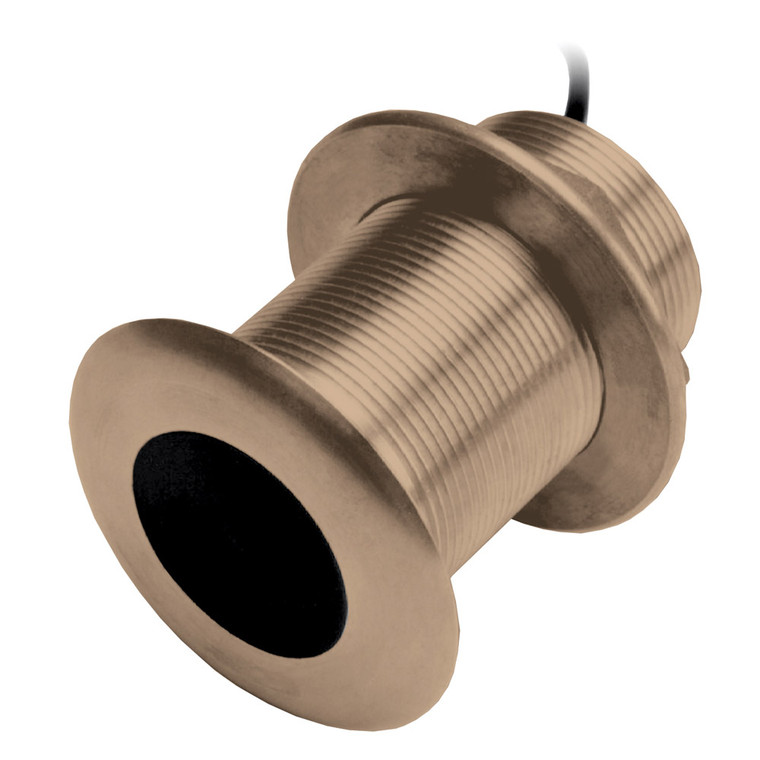

Garmin B150M Bronze 20 Degree Thru-Hull Transducer - 300W, 8-Pin [010-11927-22]

Garmin B150M Bronze 20 Degree Thru-Hull Transducer - 300W, 8-Pin [010-11927-22]

Garmin
SKU:
MCS-47872
|
UPC:
753759997694
$569.99
(No reviews yet)
Width:
8.00 (in)
Height:
4.00 (in)
Depth:
10.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

Airmar B150M
w/20° Tilt
300W

Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.

Entry Level Chirp Solution. Provides good depth capability and good target separation.

Max Depth - 1,500'
Suppoarted Deadrise/Transom Angles - 16-24° Deadrise

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Chirp: Medium
  • Cable Length (Feet): 39'
  • Temperature: Yes
  • Speed Included: No
  • Pins: 8
  • Mounting Style: Thru-Hull
  • Imaging: Standard
  • Box Dimensions: 4"H x 8"W x 10"L WT: 3.8 lbs
  • UPC: 753759997694

Owner's Manual (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Garmin's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
010-11927-22
