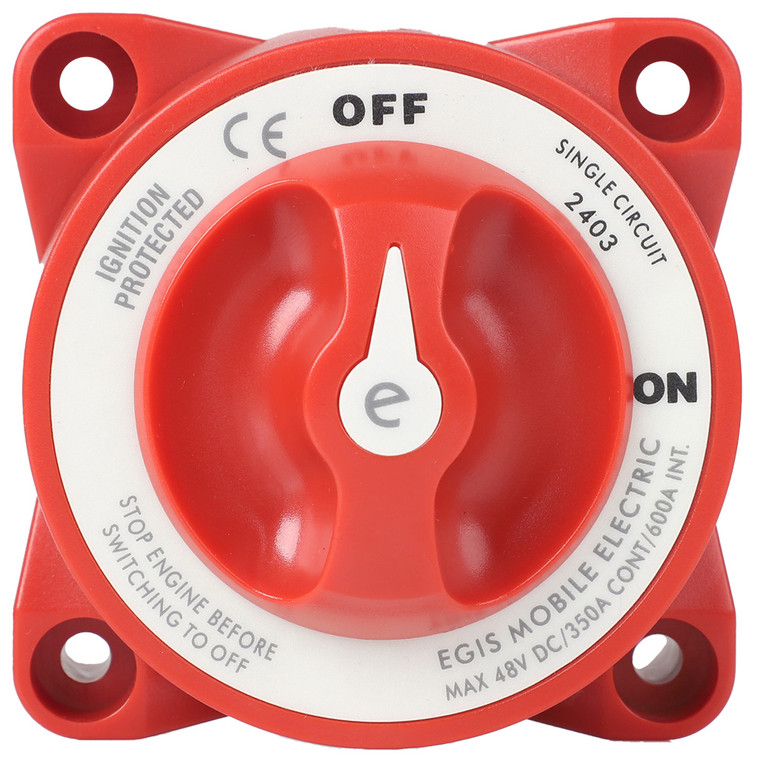

Egis E-Series 350A Battery Switch Off\/On [2403]

Egis E-Series 350A Battery Switch Off/On [2403]

Egis Mobile Electric
SKU:
MCS-110064
|
UPC:
850067590569
$33.95
$61.30
(You save $27.35 )
(No reviews yet)
Width:
5.00 (in)
Height:
4.00 (in)
Depth:
7.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

E-Series 350A Battery Switch Off/On

Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

  • Maximum Voltage (Single Circuit): 48 Vdc
  • Maximum Voltage (Selector / Dual Circuit): 32 Vdc
  • Stud Size And Thread: 3/8”-16
  • Terminal Stud Torque: 140 in-lbs (15.8 N-m)
  • Ring Terminal Size Acceptance: 3/8” (M10)
  • Mounting Holes: #1/4" (M6) Screw
  • Live Switching Rating: 25 Amps
  • Ignition Protection Rating: SAE J1171 / ISO 8846
  • Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
  • Cable Size to Meet Rating: 4/0 AWG
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.


Quick Guide (pdf)
Warranty
Manufacturer's warranty: this item is covered by Egis Mobile Electric's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
2403
