Bluewater 12 Position Beaker Block w\/Cover [3200-2001-012]

Bluewater 12 Position Beaker Block w/Cover [3200-2001-012]

Bluewater
SKU:
MCS-110999
|
UPC:
810196332317
$38.96
(No reviews yet)
Width:
9.00 (in)
Height:
3.00 (in)
Depth:
12.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

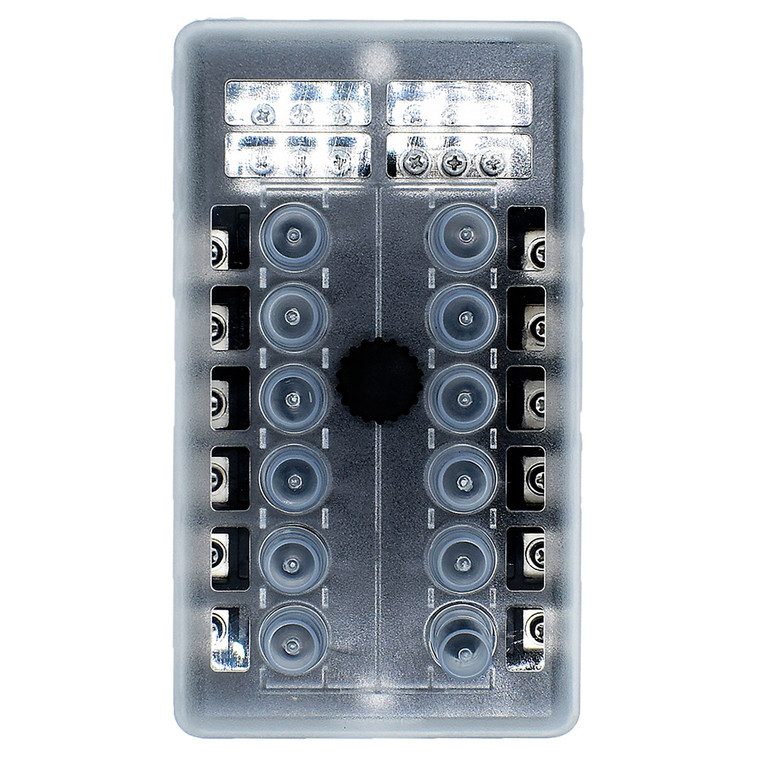

12 Position Beaker Block with Cover

A circuit breaker block is the smarter alternative to a traditional fuse box. Instead of worrying about blown fuses, each circuit is protected by a resettable thermal breaker. If one trips, simply press the breaker and restore power instantly—no spare fuses required.

Why Choose Our Circuit Breaker Block?

  • Resettable protection – Uses our 38 Series push-to-reset breakers instead of disposable fuses..
  • High capacity – Rated up to 48V DC with a 100A input.
  • Reliable design – Nickel-plated copper, stainless steel hardware, and a durable polycarbonate base.
  • Easy installation – Mounting holes sized and spaced for straightforward panel placement.

Technical Specifications:

  • Input terminals: M5 threaded studs
  • Output terminals: M4 studs, rated 25A max per circuit
  • Configurations: 12-position
  • Mounting dimensions: 12-position: 6.61” x 3.54”

Built for Marine & Mobile Systems

This circuit breaker block is engineered to handle the harsh realities of marine environments—salt spray, vibration, and constant use. Whether you’re wiring a new build or upgrading a fuse box, it provides a clean, reliable, and resettable power distribution solution.

Specifications:

  • Amperage: 100
  • Box Dimensions: 3"H x 9"W x 12"L WT: 0.95 lbs
  • UPC: 810196332317

Quick Guide (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Bluewater's warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
3200-2001-012
