Blue Sea 3117 - SMS Panel Enclosure w\/2 ELCI (30A) - 120V AC [3117]

Blue Sea 3117 - SMS Panel Enclosure w/2 ELCI (30A) - 120V AC [3117]

Blue Sea Systems
SKU:
MCS-64686
|
UPC:
632085031176
$929.95
$1,223.99
(You save $294.04 )
(No reviews yet)
Width:
10.00 (in)
Height:
7.00 (in)
Depth:
10.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

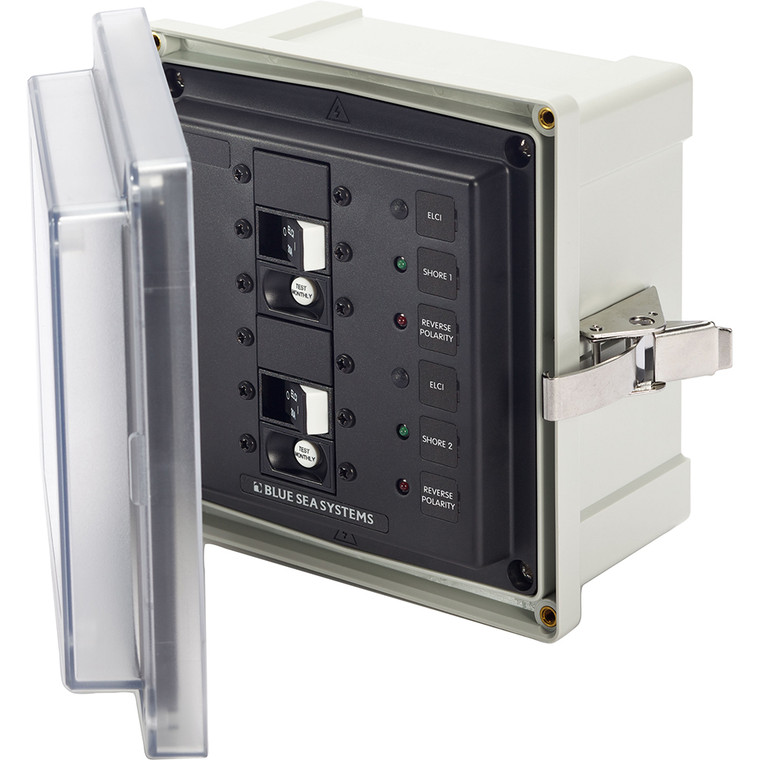

3117 - SMS Panel Enclosure with 2 ELCI (30A) - 120V AC

The 3117 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loading
  • Glass filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for back lighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 2 x ELCI (30A) Main 120V
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 2 x Red (Reverse Polarity - 120V AC and 2 x Green ON (120V AC)

In the Box:

  • 3117 Enclosure
  • Glands x 6
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Voltage: 120
  • Box Dimensions: 7"H x 10"W x 10"L WT: 4.4 lbs
  • UPC: 632085031176

Quick Guide (pdf)
Brochure (pdf)
Warranty
Manufacturer's warranty: this item is covered by Blue Sea Systems' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
3117
