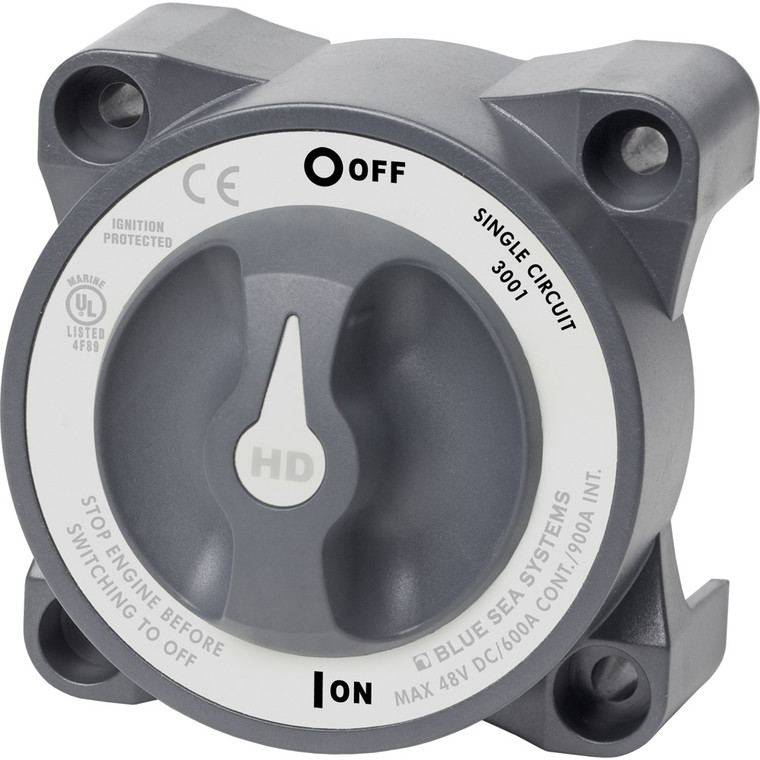

Blue Sea 3001 HD-Series Battery Switch Single Circuit ON\/OFF w\/AFD [3001]

Blue Sea 3001 HD-Series Battery Switch Single Circuit ON/OFF w/AFD [3001]

Blue Sea Systems
SKU:
MCS-20232
|
UPC:
632085030018
$116.95
$150.99
(You save $34.04 )
(No reviews yet)
Width:
7.00 (in)
Height:
3.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

3001 HD-Series Battery Switch Single Circuit ON/OFF with AFD

Features:

  • 600 Ampere Continuous Rating
  • Accepts two 4/0 battery cables per terminal
  • Ignition protected - safe for installation aboard gasoline powered boats
  • .870" (22.01mm) stud length to accept multiple cable terminals
  • 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting
  • Fits all Perko and Guest low amperage battery switch hole patterns

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Positions: 2
  • AFD: Yes
  • Continuous Amperage: 900a
  • Box Dimensions: 3"H x 7"W x 9"L WT: 1.3 lbs
  • UPC: 632085030018

Owner's Manual (pdf)
Warranty
Manufacturer's warranty: this item is covered by Blue Sea Systems' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
3001
