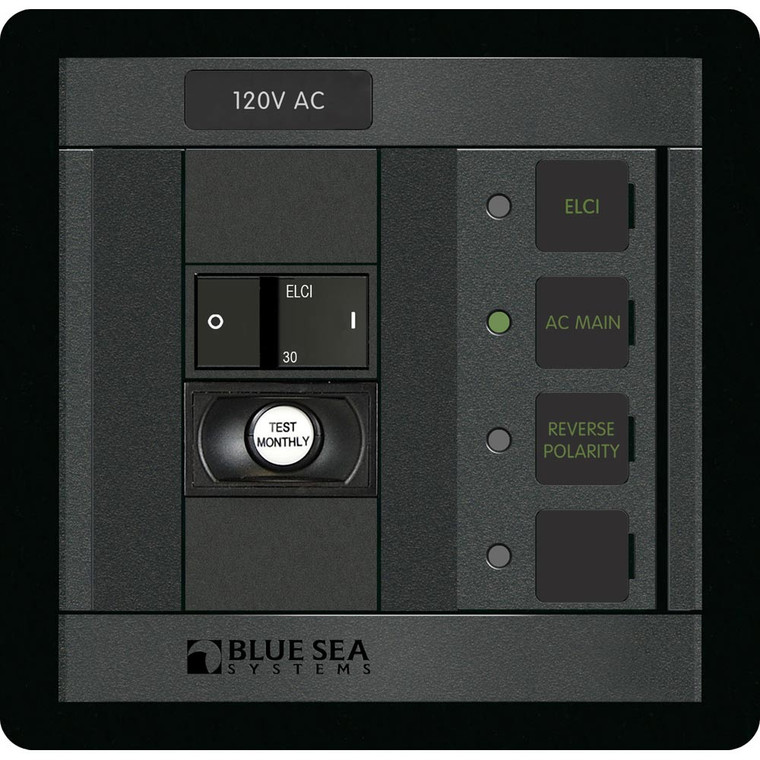

Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]

Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]

Blue Sea Systems
SKU:
MCS-57240
|
UPC:
632085015022
$587.95
$805.99
(You save $218.04 )
(No reviews yet)
Width:
6.00 (in)
Height:
6.00 (in)
Depth:
9.00 (in)
Gift wrapping:
Options available
Current Stock:
Adding to cart… The item has been added
Description

ELCI Main 30A Double Pole Panel

Features:

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications:
  • Positions: 1
  • Nominal Voltage: 120V AC
  • Height: 4.75" (120.65mm)
  • Width: 4.88" (123.95mm)
  • Depth: 3.00" (76.2mm)
  • Weight: 1.10lb (0.5kg)


Includes:
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Box Dimensions: 6"H x 6"W x 9"L WT: 2.2 lbs
  • UPC: 632085015022

Quick Guide (pdf)
Owner's Manual (pdf)
Warranty
Manufacturer's warranty: this item is covered by Blue Sea Systems' warranty. Length and terms vary by product; see the manufacturer's website or ask us. To make a claim, contact Marine Craft | Supply at (252) 571-7789 or l.spicer@marinecraftsupply.com with your order number (and the serial number for electronics). We will help you file the claim with the manufacturer or our distributor. Warranty does not cover improper installation, misuse, or normal wear.
Additional Information
MPN:
1502
