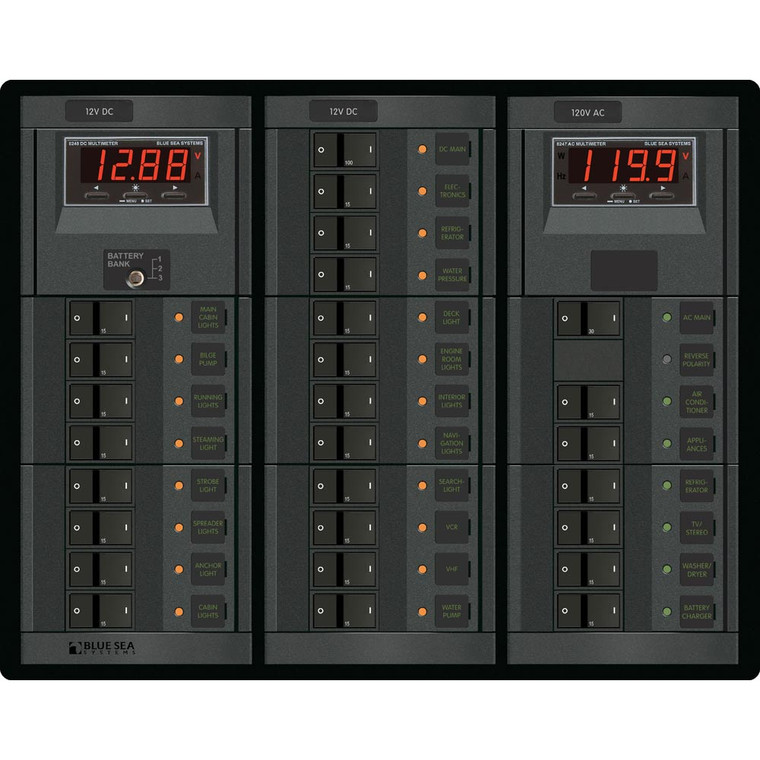

Blue Sea 1218 12V DC Main + 19 Positions / 120V AC Main + 6 Positions [1218]

12 Volt DC Main + 19 Positions/120 Volt AC Main + 6 Positions

Features:

• 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application

• AC and DC panel amperage determined by AC Main and DC Main circuit breakers

• Modular manufacturing design reduces manufacturing time

• Interchangeable modular design eliminates custom engineering and metal fabrication

• Flexible modifications

• Flexible panel orientation (panels without meters)

Specifications:

• Positions: 6-AC / 19-DC

• Nominal Voltage: 120V AC / 12V DC

• Height: 10.75" (273.05mm)

• Width: 13.63" (346.2mm)

• Depth: 4.00" (101.6mm)

• Weight: 12.80lb (5.81kg)

Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: Both
• Box Dimensions: 9"H x 12"W x 18"L WT: 11.4 lbs
• UPC: 632085012182

Quick Guide (pdf)
Owner's Manual (pdf)
